Applicable Standard
Exceeds SAE J517-100R14 Pressure Requirements
Application
- Automotive
- Chemical
- Machinery
- Pharmaceutical & Food Processing
- Plastic & Rubber Molding Machines
P.T.F.E hose has an excellent temperature characteristic both in high and low temperature, Excellent chemical resistance, non-contamination properties, low coefficient of friction and resists deterioration. Therefore the hose is used generally in applications where all are one of the above properties is main criteria.
The difference between PVC cover and Synthe Fibre Braided cover is that Synthe Fibre Braided cover has better effective heat insulation.

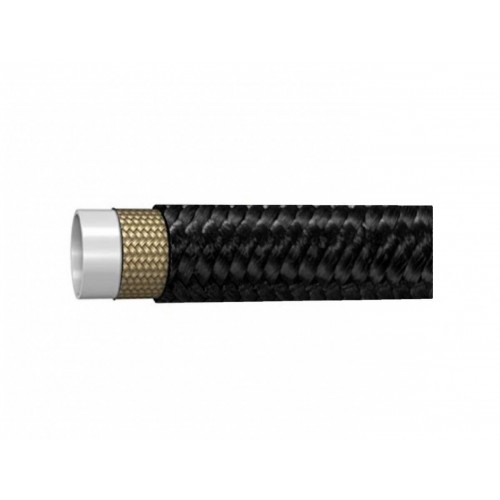

Construction
Core: Teflon PTFE
Reinforcement: Single Braided of SUS 304 series Wire
Outer Cover: Synthetic Fibre
Working Temperature
Continuous: -70℃ to 280℃ (-94℉ to 536℉)

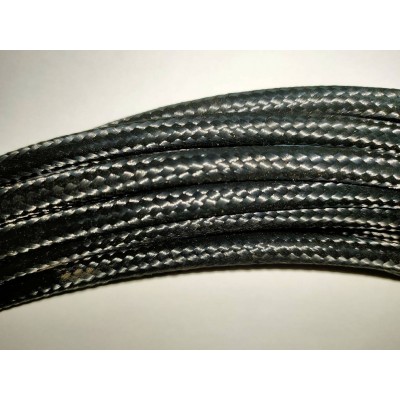

Outer Synthetic Fibre Cover Color
Black, Blue, Red
*There may be deviations in the color of the photo, please refer to the received entity
| Part No. | ID | OD |
Working Pressure |
Min. Brust Pressure |
Min. Bend Radius |
|||||
| Inch | mm | Inch | mm | psi | bar | psi | bar | mm | inch | |
| 904-03 | 1/8 | 3.3 | 0.30 | 7.5 | 3260 | 225 | 13040 | 900 | 25 | 1.0 |
| 904-04 | 3/16 | 4.8 | 0.35 | 8.8 | 2750 | 190 | 11000 | 760 | 35 | 1.4 |
| 904-05 | 1/4 | 6.3 | 0.42 | 10.5 | 2610 | 180 | 10440 | 720 | 45 | 1.8 |
| 904-06 | 5/16 | 8.0 | 0.48 | 12.3 | 2540 | 175 | 10160 | 700 | 50 | 2.0 |
| 904-08 | 13/32 | 10.3 | 0.59 | 15.0 | 2030 | 140 | 8120 | 560 | 65 | 5.4 |
| 904-10 | 1/2 | 12.7 | 0.67 | 17.0 | 1740 | 120 | 6960 | 480 | 70 | 2.6 |
| 904-12 | 5/8 | 16.0 | 0.80 | 20.5 | 1270 | 88 | 5080 | 352 | 130 | 5.2 |
| 904-16 | 7/8 | 22.5 | 1.08 | 27.5 | 870 | 60 | 3480 | 240 | 190 | 7.6 |
|
