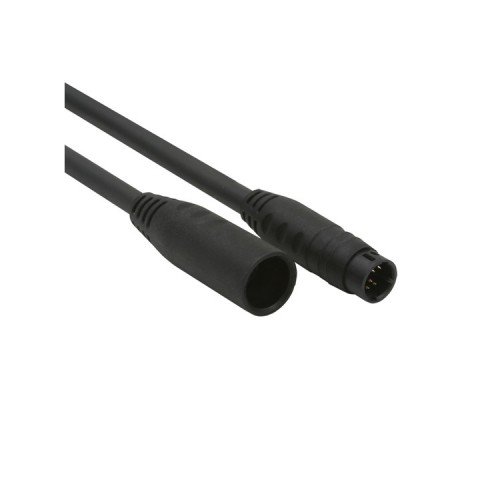

Applications: For charging & discharging use, cable to panel solution

Advantages
• Quick lock
• Small and compact
• Poka-yoke design on contact surface
• IP67 robust overmolded type
• Stable connection in vibrating environment
• RoHS and REACH compliant

Specifications

Mating Cycle：≥200 Cycles	Voltage Rating：48V AC / 60V DC	Operating  Temperature：-25°C to 85°C
Pullout Force：30-100N	Current Rating：2A	IP Rating：IP67 Mated
Wire Processing：Solder	Withstand Voltage：250V AC	Salt Spray：5% Nacl, 48H
Wire Gauge：26AWG / 0.12mm²	Insulation Resistance：>20MΩ at DC 500V	Flammability Rating：UL94 V-0 (Plastic Material)
