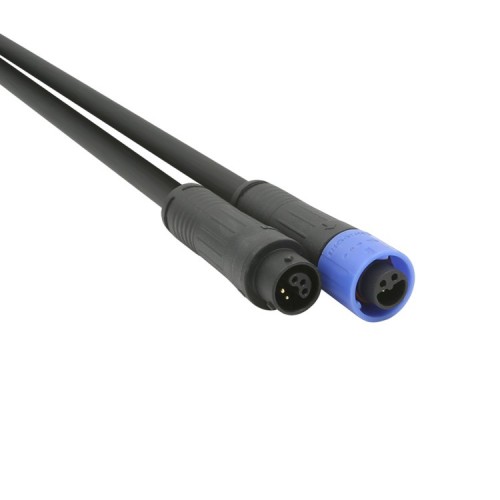

Mate50 2+3 Pin (5A+3A)


Price: N/A
Delivery: In 3 days
Origin: Taiwan
Expiry: Long-term
Edit time: 2025-03-14 15:39
Hits: 0

Supplier Information
Product Description
Applications: For Signal Use, Cable to Cable Solution

Advantages
• Quick lock
• Small and compact
• Poka-yoke design on contact surface
• IP67 robust overmolded type
• Stable connection in vibrating environment
• RoHS and REACH compliant

Specifications



Mating Cycle:500 Cycles

Voltage Rating:48V AC / 60V DC

Operating  Temperature:-25°C to 80°C

Wire Processing:Solder

Current Rating:5A+3A

IP Rating:IP67

Wire Gauge:20AWG / 0.5mm² +

Withstand Voltage:500V AC

Salt Spray:5% Nacl, 48H

24AWG / 0.2mm²

Insulation Resistance:20MΩ at DC 500V

Flammability Rating:UL94 V-0 (Plastic Material)
