[VIP The 1 year ] Index:1
Features
Anti-lock
IPX7 waterproof
International standard
Product Specifications

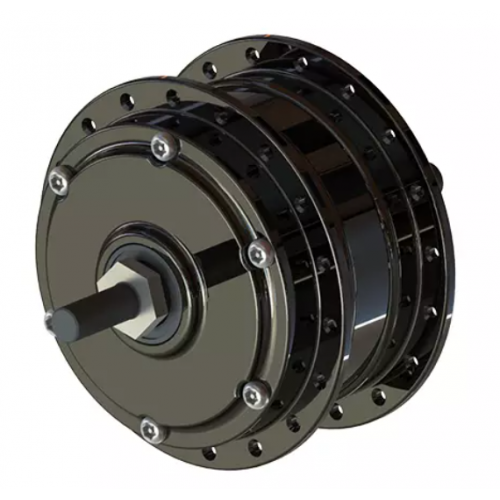

Model：3702
Installation Position：Front Wheel
Reference Weight (kg)：1.3
External Dimension(mm)：Φ110*165
Optional Communication Interface：UART/485 /CAN
Optional Voltage：5VDC/12VDC
Standby Power：12mA@5V/6mA@12V
Protection Mode：Built in Hidden Installation+ Software Protections+ABS MECHANICAL Protection
Waterproof Grade：IPX7
O.L.D. (mm)：120
Axle Diameter (mm)：12
Axle Length (mm)：170
Shaft Thread Specification：M12*1.25
Spoke Hole Specifications：36H13G
Distance Between Two Spoke Surfaces (mm):38.1
Color：Black
Application
Shared bikes、E-bikes。
