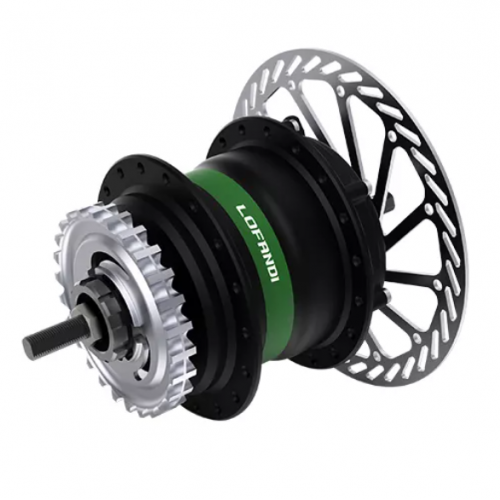

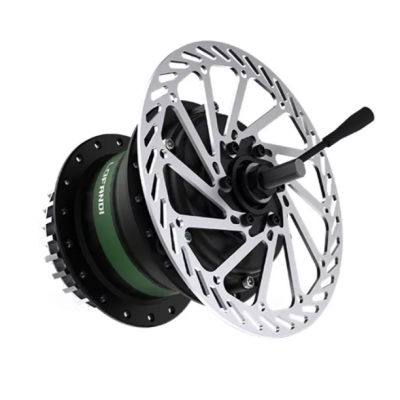

5-Speed Internal-gear Hub (Manual & Automatic Integration)

 Product Description
Features

Ultra High Torque

Two shifting modes (auto & manual)

Electronic shifting



Product Specifications

Series：5-speed Internal-gear Hub (Manual & Automatic Integration)

Variable Speed Level：5

Gear Ratio：249%

Gear Ratio 1：0.74

Gear Ratio 2：1

Gear Ratio 3：1.3

Gear Ratio 4：1.56

Gear Ratio 5：1.84

Brake Type：Six Nail Disc Brake

Hub Shell Material：Aluminum

Spoke Size：#13/#14

O.L.D. (mm)：142

Axle Length (mm)：198

Spoke Plate Distance：64

P.C.D. (mm)：105.8

Spoke Plate Diameter (mm)：118

Spoke Plate Width(Left) (mm)：3.2

Spoke Plate Width(Right) (mm)：3.2

Chain Line(Install Outside) (mm)：57.9

Chain Line(Install Inside) (mm)：52.8

Offset (mm)：0

Axle Length from the Hub(Left)：28

Axle Length from the Hub(Right)：28

Thread Size：M12x1.25

Dropout Mounting Width(left)：5-9

Dropout Mounting Width(Right)：5-9

Locked Spacer Width (mm)：5

Spoke Hole Diameter (mm)：3.2

Spoke Hole Number：36

Disc Brake Mounting Width：14.7

Color：Black / Silver

Average Weight (kg)：2.15
