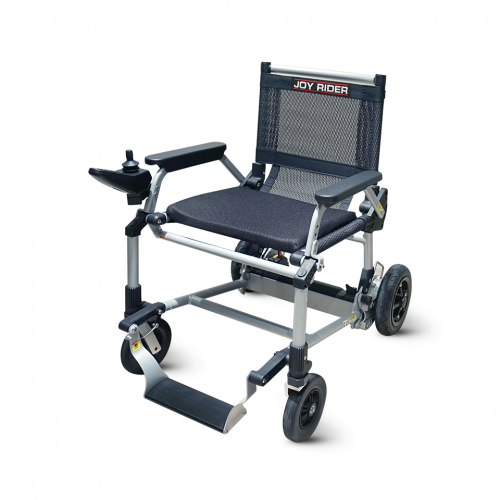

JOYRIDER split frame version is an upgraded model based on original Joyrider. Retain all the attractive features of original Joyrider, but with a detachable frame.
With quick-released design, the frame can be split into 2 sections within a few seconds, no tool are required. Lighter weight makes user to lift into the truck of car easily.
SPECIFICATIONS
- Overall Weight22.9 kg (50.5 lb) including battery
- Dimensions (LxWxH)855 x 660 x 910 mm (34”x26”x36”)
- Folded (LxWxH)1115 x 660 x 320 mm (44”x26”x12”)
- Seat Height485 mm (19”)
- Seat Dimensions330 x 420 mm (13”x16.5”)
- Max User Weight115 kg (253lb)
- Range8.7Ah: 13 km (8.1 mile) / 10.5Ah: 15 km (9.3 mile)
- Speed0-6 km/h (0-3.7 MPH)
- Max Slope10°
- Turning Radius900 mm (35”)
- MotorBrushless DC 24V, 200W x 2
- Braking SystemElectromagnetic brake
- Control SystemJoystick
- BatteryDC 24V, 8.7Ah Li-ion battery / DC 24V, 10.5Ah Li-ion battery
- Charger24V 2A
- Charging Time4.5-5.5 Hour
- Front Wheels7 inch PU solid
- Rear Wheels10 inch pneumatic / 10 inch PU solid
- ColorsBlack / Green / Blue
- ArmrestsStandard with PU pad, fixed
- AccessoriesSafety belt, basket, rear bag, water bottle holder, front light, rear light, reflector, charging adapter (off-board adapter), conversion kit for swing-away armrest, stand, travel bag, assistance kit, magnetic connection set
- Warranty And Service1 year excluding wearable parts
- NOTE:Accessories shown in the photographs are not necessarily included in the base price.
- *All specifications and product configurations are subject to change without notification.
- **Range figure is based on the test results in laboratory. Actual figures may differ by using conditions such as user weights, road conditions, weather, and etc.
