Product Description

Features

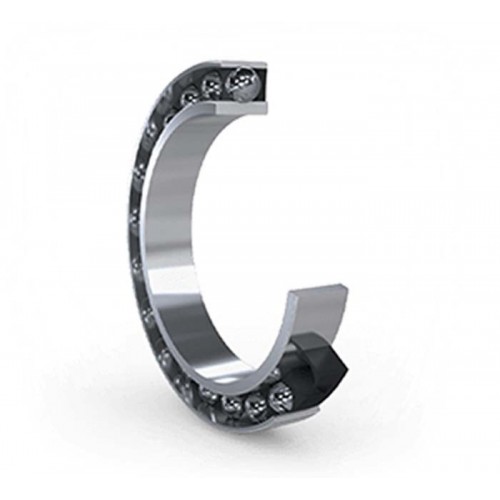

Flexible bearings for the strainwave drive is structured by inner ring, outer ring, steel ball and cage.
Applying to the wave generator in strainwave drive, it helps transfer the waveform and can bear radial loads.

Caution

There are two cage types for flexible bearings, single-piece and double-piece. Sufficient shaft shoulder should be considered when it comes to single-piece cage, since it is one-sided, shaft shoulder is necessary to prevent cage separation. If it is a two-piece cage, please avoid pressing the cage when installing. (Any special requirement or more bearing types, please contact TPI deep groove ball bearing factory)

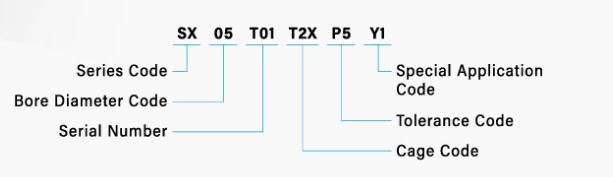

Designation

The designation indicates the form, size, precision, internal structure, etc. of the bearing, and it's shown as below:
擷取2
