INTRODUCTION
√ Ergonomic Seat with Lumbar Back pad enhances comfort and support while encouraging body alighment.
√ Low Step-Thru Entry allows user easy access to step on the workout position.
√ With Color Friendly Elements on the seat adjustment and pedal is the best solution for inspired with users.
WORKOUT FUN WITH Kinomap and Zwift APPS
FOR A MORE IMMERSIVE EXPERIENCE!
Unique Workout Experience with Smart Console
. Motivating
. Reflective
. Inspiration
"Brain Game" workout is an exclusive and theory-based regimen that enhances progressive to optimize the effort user put in. "Brain Game" program provides interactive and engaging software that motives users, especially for the senior people, to improve their motor skills to keep activity of daily living.
Two Console Options
Making the general user, senior, rehabilitation, or wheelchair exercisers stay engaged and on track to reach their fitness goals.
SPECIFICATIONS
| Features | |
| Handlebar Design | Easy-Grip Handles with Anti-Slip Surface |
| ComfortCurve™ Seat | ● |
| Reclining Seat | 3 Levles/ 12° |
| Seat Adjustment | 10, Fully Horizontal Adjustment |
| Pedal Design | WideRide™ Pedal with Adjustable Pedal Strap |
| Low Step-Through Design | ● |
| Adjustable Console | ● |
| Integrated Reading Rack | ● |
| Removable Water Bottle Holder | ● |
| Wheels for Easy Mobility | ● |
| Heart Rate | Contact Hear Rate, Built-in Heart Rate Monitor |
| Certificated | CE |

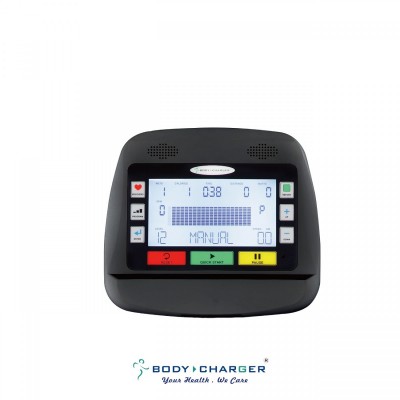

| Standard Console | |
| Display Type | 9" White Backlit LCD |
| Exercise Programs | 20, Warm Up, Manual, Interval, Valley, Ramp, Mountain, Rolling, Climb, Random, Hill, Fat Burn, Cardio, Strength, HRC (65%, 85%), Constant Power, Isokinetic, Goal (Calories, Distance), Recovery, User 1 |
| Display Feedback | Time, Level, Pulse, Distance, Calories, RPM/ SPM, Watts, METs, Speed |
| Capacitance Touchable Keypad | ● |
| USB Port | Expoer Workout Data, Software Upgrade and Charging |
| Quick Start | ● |
| Pause Function | ● |

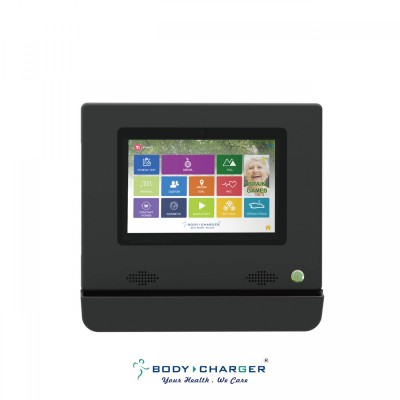

| Smart Console | |
| Display Type | 10.1" TFT IPS Touch Screen |
| Exercise Program | 16, Quick Start, Hill, Interval, Goal (Time, Calories, Distance, Steps), Virtual Reality, HRC (60%, 80%, Target HR), Fitness Test, Custom, Isokinetic, Constant Power, Brain Games |
| Display Feedback | Time, Level, Pulse, Distance, Calories, METs/Watt, RPM/Speed |
| Multi-Language | ● |
| Entertainment System | ● |
| Bluetooth/ Wireless/ NFC | ● |
| USB Port | Export Workout Data, Software Upgrade and Charging |
| i-Care Function | ● |
| Quick Start | ● |
| Pause Function | ● |
| Headphone Plug | ● |
| RS232 Port | ● |
| Resistance System | |
| Operation System | A. EMS System (Electromagnetic) B. DX System (Generator) |
| Resistance Levels | 36/ Smart Console |
| Resistance Levels | 32/ Standard Console |
| Power Requirements | Input: 100-240 VAC ~ 50/60Hz, 1.5A Max Output: DC30V–2.0A |
| Tech Spec. | |
| Max. User Weight | 200 kg/ 440 lbs. |
| N.W. | 85 kg/ 187 lbs. |
| G.W. | 95 kg/ 209 lbs. |
| Overall Dimensions (L x W x H) | 169 x 68 x 133 cm/ 66.5" x 27" x 52" |
