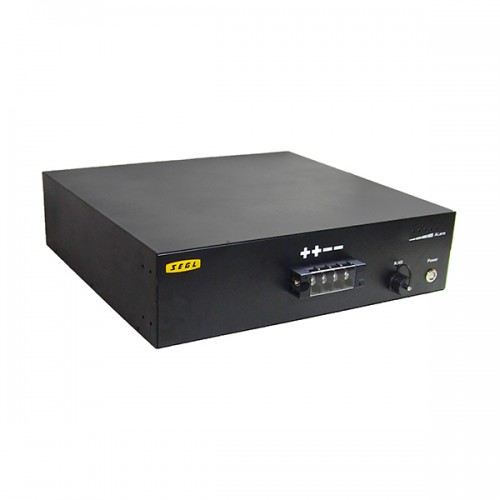

Lithium-Ion Battery Pack ENERGY BACK UP

Rated Capacity 3KW  0.2C discharge

Cell Used LG 18650 type

Configuration 14 Series 20 Parallel

Impedance <80mΩ

Standard Charge 30A to 58.8V for 6 hours

Standard Discharge 60A

End Voltage 42V

Maximum Charge Current Below 65A

Maximum Pulse Discharge Current 100A maximum time 3 seconds

Operating Temperature(Charge) 0℃~45℃

Storage Tempperature -20℃~35℃

Dimension 482 x 400 x 110 mm (LxWxH)

Weight <18.0 kg
