HM-TDF-35Z-1

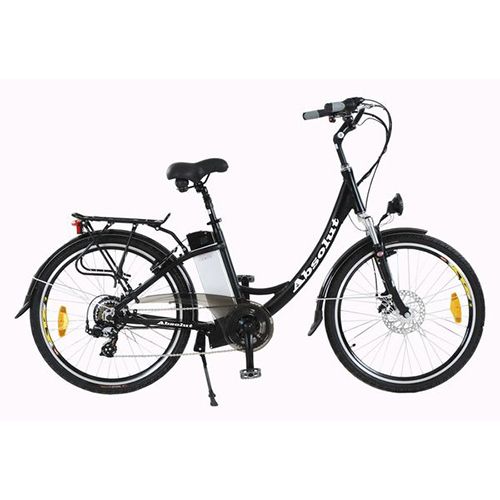

Model HM- TDF35Z-1 26" Alloy E-Bike 6- speed ( EN-15194 approved )
Frame Alloy 6061
Fork Alloy , Suspension
Wheel set 26", Alloy, Double wall.
Tires 26" x 1.75"
Spokes 13G, Steel.
Front Derailleur NIL
Rear Derailleur Shimano Tourney RD-TX50 6-speed
Shifter Shimano Revo Shift
Cassette Shimano MF-TZ06
Crankset 44T Steel chain ring, Alloy crank
Bottom Bracket Cartridge type
Seat post Alloy, With suspension
Saddle Gel cruiser saddle
Handlebar Alloy
Stem Alloy
Brake Front - Disc brake, Rear - Alloy V-brake.
Brake Lever Alloy / Resin
Mudguard Alloy fender with steel stays
Light Front - powered to battery / Rear -LED light
Pedal PC
kickstand Alloy, Double kickstand
Rear carrier Alloy
Power indicator Combined with front light
Motor 180-250 w High Speed Brushless Gear DC hub motor
Control Outer 1:1 assistance system
Battery 36V 10AH Li-ploymer
Charger 220/110V, 50-60Hz 2 amps smart charger. Charge time 4-6 hours
Maximum speed <=25Km /h
Weight 26kgs
