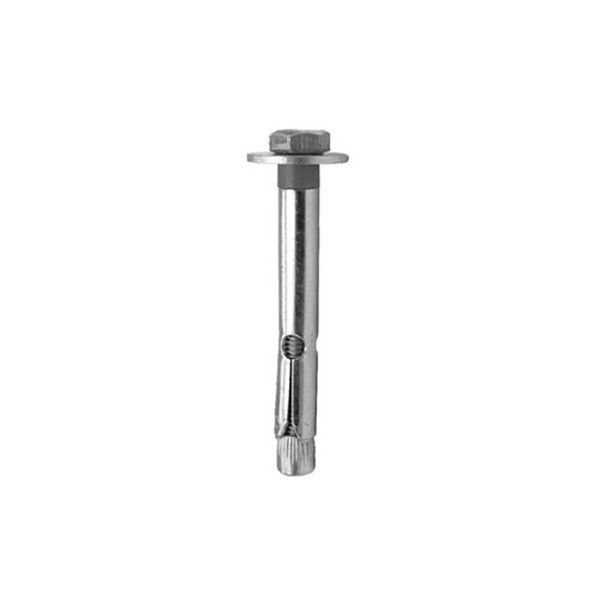

• The screws of the anchor have been manufactured under the DIN-933 standard and their quality-hardness is 6.8 (i.e. 60 to 80 kg/mm)
• The washer is wide, which gives a bigger allowance for pieces or structures to be fastened.
• While performing the fixing of the anchor, the plastic part or ring gets deformed, which fills and blocks the hole of the piece or structure to be fastened; this plastics absorbs material irregularities, and it is a useful damp-proof piece to protect the inner mechanism of the anchor.
• Any screw head available at your request.
• The cone has some grooves (milling) in order to prevent the anchor from loose or spin movement after fixing into the hole and ready to expansion.
| Order Code |
Anchor Size |
Drill Dia. |
Min. Hole Depth |
Max. Fixture Thickness |
Sleeve Length |
| AFHT08C | M6 x 45 | 8 | 43 | 2 | 30 |
| AFHT08L | M6 x 50 | 8 | 43 | 15 | 45 |
| AFHT09C | M6 x 45 | 9 | 43 | 2 | 30 |
| AFHT09L | M6 x 60 | 9 | 43 | 15 | 45 |
| AFHT10C | M8 x 60 | 10 | 55 | 5 | 41 |
| AFHT10L | M8 x 80 | 10 | 55 | 15 | 62 |
| AFHT11C | M8 x 60 | 11 | 55 | 5 | 41 |
| AFHT11L | M8 x 80 | 11 | 55 | 15 | 62 |
| AFHT12C | M10 x 70 | 12 | 70 | 2 | 48 |
| AFHT12L | M10 x 100 | 12 | 70 | 25 | 75 |
| AFHT14C | M10 x 70 | 14 | 70 | 2 | 50 |
| AFHT14L | M10 x 100 | 14 | 70 | 25 | 75 |
| AFHT16C | M12 x 80 | 16 | 80 | 2 | 55 |
| AFHT16L | M12 x 110 | 16 | 80 | 25 | 87 |
| AFHT20C | M16 x 110 | 20 | 90 | 15 | 82 |
| AFHT25C | M20 x 130 | 25 | 105 | 25 | 100 |
| AFHE08C | M6 x 45 | 8 | 43 | 2 | 30 |
| AFHE09C | M6 x 45 | 9 | 43 | 2 | 30 |
| AFHE10C | M8 x 60 | 10 | 55 | 5 | 41 |
| AFHE10L | M8 x 80 | 10 | 55 | 25 | 62 |
| AFHE11C | M8 x 60 | 11 | 55 | 5 | 41 |
| AFHE11L | M8 x 80 | 11 | 55 | 25 | 62 |
| AFHE12C | M10 x 70 | 12 | 70 | 2 | 48 |
| AFHE12L | M10 x 100 | 12 | 70 | 25 | 75 |
| AFHE14C | M10 x 70 | 14 | 70 | 2 | 50 |
| AFHE14L | M10 x 100 | 14 | 70 | 25 | 75 |
| AFHA08C | M6 x 45 | 8 | 43 | 2 | 30 |
| AFHA09C | M6 x 45 | 9 | 43 | 2 | 30 |
| AFHA10C | M8 x 60 | 10 | 55 | 5 | 41 |
| AFHA11C | M8 x 60 | 11 | 55 | 5 | 41 |
| AFHA12C | M10 x 70 | 12 | 70 | 2 | 48 |
| AFHA14C | M10 x 70 | 14 | 70 | 2 | 50 |
| AFHA16C | M12 x 80 | 16 | 80 | 2 | 55 |
| AFHG08C | M6 x 45 | 8 | 43 | 5 | 30 |
| AFHG09C | M6 x 45 | 9 | 43 | 5 | 30 |
| AFHG10C | M8 x 60 | 10 | 55 | 6 | 41 |
| AFHG11C | M8 x 60 | 11 | 55 | 6 | 41 |
| AFHG12C | M10 x 70 | 12 | 70 | 10 | 48 |
| AFHG14C | M10 x 70 | 14 | 70 | 10 | 50 |
| AFHG16C | M12 x 80 | 16 | 80 | 20 | 55 |
