PLASTER SIZE:Ø36,Ø40(MM)
PACKING SIZE:70X70,75X75(MM)
PACKING CAPACITY:1(PC/PACK)
MAX.SPEED:60(PCS/MIN)
MOTOR:1HPX1
HEATER:1.2(KW)
DIMENSIONS:280LX110WX180H(CM)

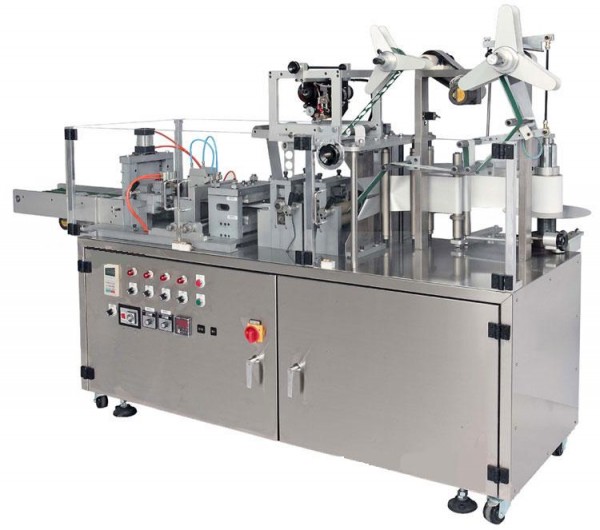

Features of Machine Model: DC-324
1. Tension of material is controlled automatically and
mechanically.
2. It can be adjusted by hand-wheel when positioning of product
needs to be corrected.
3. Plaster shaping is done by cutting roller and products are
possible to be made in various shapes.
4. Sealing on packing and cutting, etc. are done by push- punch-
type cutter.
5. Suitable for use on one single roll of packing paper for
positioning the correct printing both on front and back side of the
packing paper to fit in with each other.
6. Process of packing plus edge cutting can highly elevate the
quality of finished product after packing.
7. Positioned cutting can be done by detecting the printing mark
on packing paper sensed by photoelectric.
8. Machine will automatically stop as soon as running out of
material is detected by auto sensor.
9. Waste after shaping are smoothly collected and sucked into
the drum by pump to better production process.
10. Machine designed in horizontal position to facilitate the
operating for production. And it is easy to change for making
different specification of products and also very easy to do
regular maintenance.
