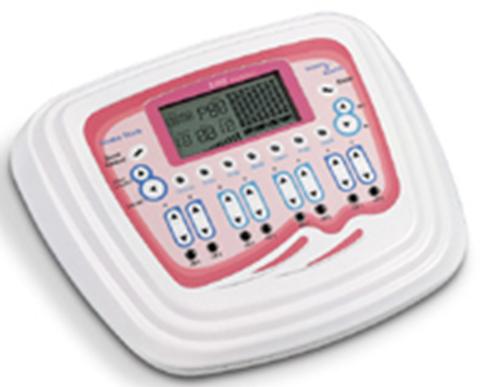

Physiotherapy HT558


Price: N/A
Expiry: Long-term
Edit time: 2012-04-17 13:47
Hits: 1361

Supplier Information
Product Description
4 Channels (8Pads)
http://www.hometech.com.tw/images/icon_6.jpg

Large clear LCD which transmits function situation & operating condition

http://www.hometech.com.tw/images/icon_6.jpg

Offers 40 composed programs & 90 Function Modes with a possible 20790 different Combinations

http://www.hometech.com.tw/images/icon_6.jpg

Able to store 100 of the user's edited programs by using PC.

http://www.hometech.com.tw/images/icon_6.jpg

Special dynamic scan which helps muscles avoid getting used to the stimulation.

http://www.hometech.com.tw/images/icon_6.jpg

Can save 750 different therapy data results, date, time & patient's ID.

http://www.hometech.com.tw/images/icon_6.jpg

IT can memorize two patient's basic ID making it easier to distinguish the therapy results.

http://www.hometech.com.tw/images/icon_6.jpg

With four alarm settings to remind user of daily routines.

http://www.hometech.com.tw/images/icon_6.jpg

The unit can be connect to PC to translate all the saved data with RS 232 interface connector.

http://www.hometech.com.tw/images/icon_6.jpg

Includes suitable software for Windows 98, 2000 and XP.

http://www.hometech.com.tw/images/icon_6.jpg

Data can be transfered from unit to computer and results shown in an easy to read graph.

http://www.hometech.com.tw/images/icon_6.jpg

The computer will auto seperate each patients data by reading the user's ID from the unit.

http://www.hometech.com.tw/images/icon_5.jpg
Specifications
http://www.hometech.com.tw/images/space.gif
Dimension
225 x 205 x 68;30 (mm)
Weight
850gm (battery included)
Power supply

230V 50Hz (110V AC 60Hz) to DC 9V adaptor or 1.5V(SUM-2)
battery 6 pcs and DC 3V (CR2025) 1 pcs for clock

Channel

4(4CH) independent isolated transformers
6(6CH) independent isolated transformers
8(8CH) independent isolated transformers

Input current

300mA(4CH); 400mA(6CH); 500mA(8CH)
DC 9V maximum

Output current
0~120mA P to P into 500Ω load
Timer
01~99 mins auto off and continuous
Function mode

"A1~9"~"J1~J9" total 90 program modes
On Time : 1...15 seconds
Off Time : 0...10 seconds (11 steps)
Scan Value : ±0~50% adjustable
Scan Type : 7 different types
Combination forms : 20790 different forms
Intensity Level : 20 steps
Pulse Width : 250uS
Rate : 2Hz~150Hz

Program mode
"P1~9" total 9 programs
Edit on unit

"U1~9" & "L1~9" total 18 programs

Edit on PC

"00~99" total 100 programs
On Time : 1...19 seconds
Off Time : 0...19 seconds
Scan Value : ±0~50%
Step Cycle : 12
Scan Type : 7 different types
Intensity Level : 20 steps
Pulse Width : 250~500uS
Rate : 1~150Hz

Ramp up

10 seconds (intensity level from "0" to "20" )

LCD display

Timer count down/program mode/on time/
off time/rate/scan type/scan level/intensity level

Buzzer

4 different reminders
1.correct single beep
2.pay attention triple beep
3.mistake continue beep
4.reminder slow single beep
