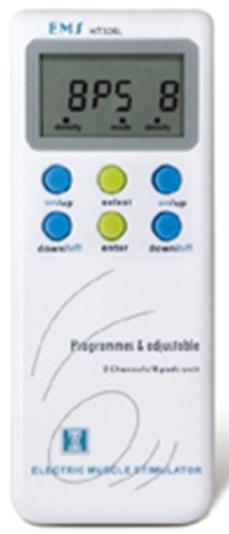

Physiotherapy HT326L


Price: N/A
Expiry: Long-term
Edit time: 2024-11-18 13:58
Hits: 1226

Supplier Information
Product Description
2 Channels (4Pads)


Effective in helping to manage particular pain problems.

http://www.hometech.com.tw/images/icon_6.jpg

Use to assist treatment of headache, toothache, back pain, tennis elbow, sport strains and muscle injuries.

http://www.hometech.com.tw/images/icon_6.jpg
Relieving soreness in the applied area.
http://www.hometech.com.tw/images/icon_6.jpg

Helps to strengthen and thttp://www.hometech.com.tw/images/icon_6.jpgone muscles.

http://www.hometech.com.tw/images/icon_6.jpg

When the unit starts operation or the program has been changed. The intensity level ("density") will return to "0" .

http://www.hometech.com.tw/images/icon_6.jpg

When the unit starts operation, the intensity ("density") output has been designed with a gradual 3 seconds raise ramp.

http://www.hometech.com.tw/images/icon_6.jpg

When timer has reached 0 min. Unit will auto-shut down. The unit can remember last setting.

http://www.hometech.com.tw/images/icon_6.jpg

If intensity levels ("density") are at "0" and unit is not being used, it will automatically shut down after 3 mins.

http://www.hometech.com.tw/images/icon_6.jpg

P1~P0 timer is programmed 30 mins with backward count down.

http://www.hometech.com.tw/images/icon_6.jpg

Screen will exchange display timer/mode/on time/rate/off time/density ("density"=intensity) every 3 secs.

http://www.hometech.com.tw/images/icon_6.jpg

The unit is designed with a buzzer to assist operation.

http://www.hometech.com.tw/images/icon_5.jpg
Specifications
http://www.hometech.com.tw/images/space.gif
Dimension
150 x 60 x 21 (mm)
Channel
two independent channels
Power supply
1.5V (size AA) battery x 3 pcs
Output
0~100mA P to P into 500Ω load
Density(Intensity)
change of 15 steps pulse amplitude
Timer
30 or 1~99 minutes backward count
Wave form
dual phases square wave
Display

timer/mode/on time/rate/off time/density ("density"=intensity)

Mode

P1~P5 TENS massager, P6~P9 fitness EMS
the final P0 fully adjustable program
Rate
1Hz~120Hz
timer
1~99 minutes
Contraction(on time)
1sec.~30sec.
Relaxation(off time)
:0sec.~30sec.

Ramp up
3 seconds
Buzzer

3 different reminders
1.Correct single beep
2.Pay attention triple beep
3.Mistake continue beep

Output load detect
alarm in operation without connect lead wire
Pulse wave form
http://www.hometech.com.tw/images/pic_2.jpg
