Reynolds 853 is a legend. However, a frame built with this legendary tubing does not automatically make it a good frame.
It is the frame building skills that add soul to it.
CrMo welding rod combined with high precision processing and the world class quality welding make every Rikulau 853 bike a superb ride quality.
Rikulau’s 853 bike is equivalent to comfort and stability.

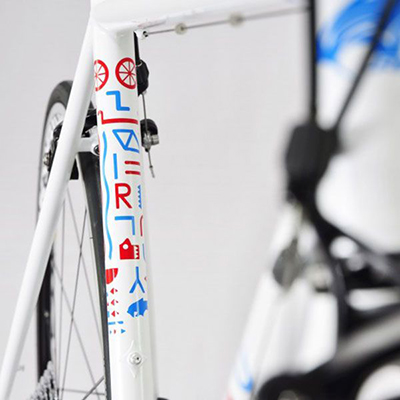

MERRIMENT
This is a graphics design that conveys fun and happiness.
Joy elements such as mountain, river, good food and bike components are presented in sprue.
When combined with vivid colors, the design has a magic to bring joy and “Merriment”.
Merriment design is found on Rikulau 853 road frame only.
Reynolds 853 Cr-Mo
Reynolds tubings have been highly regarded in the bike industry. The strength to weight ratio is close to that of titanium alloy.
853 is a legend. It has clinched to a position what other steel materials could not.
However, a frame built with 853 does not automatically make it a good frame. frame building skills play a big role.
|

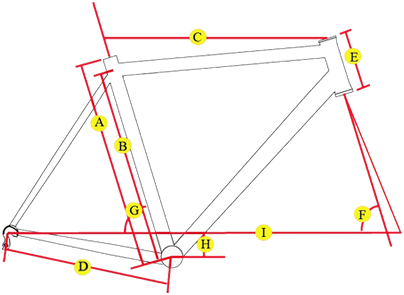

Model: Reynolds 853 Road frame Geometry |
||||||||||||
|
Size
|
Seat Tube
|
Effective top tube
|
Chain stay
|
Head tube
|
Head tube angle
|
Seat tube |
BB drop
|
Wheel base
|
Standover height
|
Top tube angle
|
Weight |
|
|
C-T
|
C-C
|
|||||||||||
|
(A)
|
(B)
|
(C)
|
(D)
|
(E)
|
(F)
|
(G)
|
(H)
|
(I)
|
||||
|
XS
|
485
|
445
|
510
|
405
|
115
|
71.5
|
74
|
68
|
956.9
|
735.8
|
5.4
|
1.42
|
|
S
|
500
|
460
|
525
|
405
|
125
|
72
|
74
|
68
|
967
|
746.2
|
4.4
|
1.50
|
|
M
|
515
|
475
|
540
|
405
|
135
|
72.5
|
73.5
|
68
|
972
|
758.4
|
4.1
|
1.59
|
|
L
|
535
|
495
|
555
|
410
|
150
|
73
|
73
|
68
|
978.4
|
775.4
|
3.8
|
1.63
|
|
XL
|
555
|
515
|
570
|
410
|
165
|
73
|
73
|
68
|
993
|
792.1
|
3.2
|
1.68
|
|
XXL
|
575
|
535
|
585
|
410
|
180
|
73
|
72.5
|
68
|
1002
|
808.1
|
2.6
|
1.73
|
Note: all measurements in millimeter (mm) except head tube and seat tube angles in degrees.
Features:
1. CrMo welding rod
2. Electro-deposition anti-rust protective layer
Specs
1. Traditional head tube for 1 1/8” fork steerer
2. Tubing: Reynolds 853 for main triangle tubes, and heat treated CrMo tubes for rear triangle
3. 365 mm fork length; 43 mm rake
4. 27.2 mm seat post
|

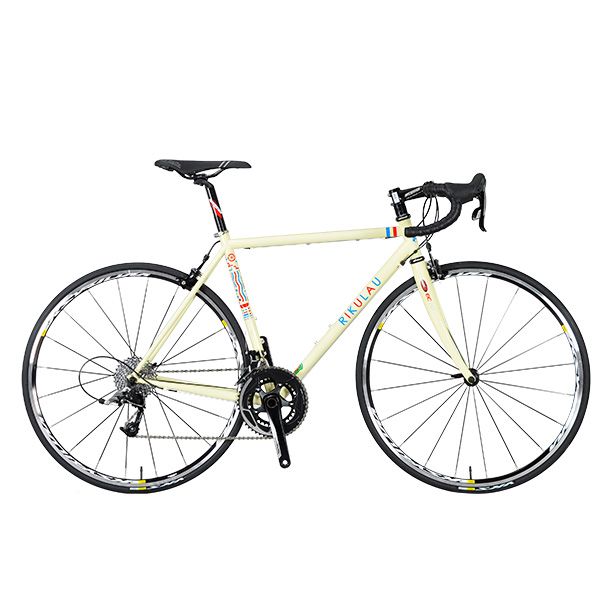

Model: Rikulau 853 Cr-Mo road bike |
|
|
Item
|
SRAM Rival
|
|
frame
|
Reynolds 853 for |
|
Handlebar
|
FSA Gossamer Compact
|
|
Stem
|
FSA Afterburner
|
|
Headset
|
FSA Orbit X
|
|
Grip/Bar Tape
|
Rikulau
|
|
Fork
|
Rikulau carbon 1 1/8” Fork
|
|
Saddle
|
Rikulau
|
|
Seat post
|
FSA Energy |
|
Groupset
|
Sram Rival (5dumpfil, 11-28T)
|
|
Seatpost clamp
|
Alloy CNC
|
|
Chain
|
KMC X11L
|
|
Wheel set
|
Mavic Ksyrium Equipe
|
|
Tires
|
Mavic Ksyrium Equipe 725C
|
Note: Rikulau reserves the right to updat components with those of equal or higher value.
