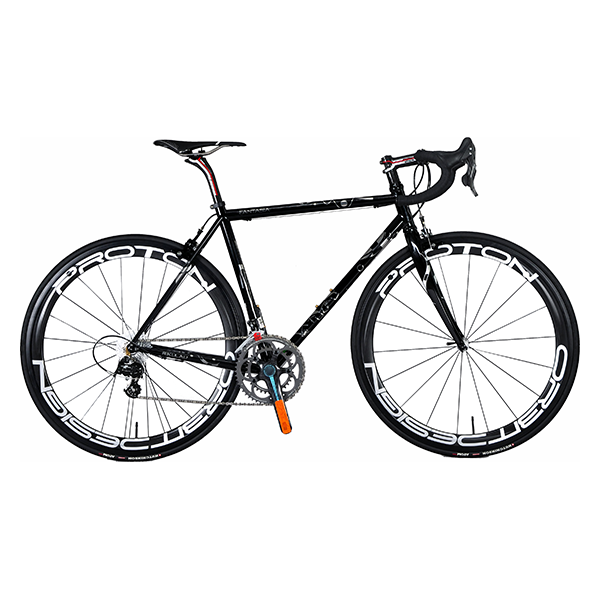

Rikulau 953 Road Bike
Rikulau was one of the first brands in the world to embrace Reynolds 953. We designed Rikulau 953 bike to be an ultimate racing machine that transfers all the pedaling energy of a rider into forwarding speed. It is stiff, it is fast, it is a road warrior.

Features of Rikulau 953 road bike are:
1. Integrated head tube for enhanced stiffness and modern appearance
2. Flattened seat stay for more comfort
3. Larger down tube for increased stiffness

Fanta′sia
This is a graphics design that allows the riders unleash their imagination. The design describes a story of life. The circle in the head tube depicts the beginning of life. The vivid and vibrant graphics on the main triangle expressed the abundant experiences in life. Then, the more balanced and symmetric layout on the rear stays means maturity in life. The varying and irregular geometric forms are expected to evoke rhythms in the inner soul.
Fanta′sia follows the artistic style of Wassily Kandinsky-the great master of pure-abstract art. In his eyes, the shapes and colors on each art work have their spiritual meanings. We hope every observer define the meaning they see in Fanta′sia.

Reynolds 953
Rikulau formally launched Reynolds 953 stainless steel product during 2006 Eurobike Show. This product drew a lot of attention during Eurobikeshow, and the Interbike and Australian Cycle show that followed.
Reynolds 953 is the latest innovation of the Reynolds tubing family.It is an ultra-strong, highly impact resistant stainless steel,with the legendary resilient ride of steel.This martensitic-aging material went through doublevacuum remelt process to achieve an incredible ultimate tensile strength of more than 2000 MPa which is surpassed only by carbon fiber among all the materials used for frame building. It is so strong that a 953 tube can be as thin as 0.3 mm which is comparable to an IC wafer..No other bicycle frame material can be thinner.

Originally designed for the military industry, it is highly resistant to impact and corrosion and it has a good metal fatigue property. As 953 has a very high tensile strength, a 953 frame has high stiffness. Therefore, all the pedaling power can be effectively transferred to forward moving speed. Besides, 953 still keeps the legendary riding quality of steel frame by absorbing small vibrations from the road.Light weight, efficiency and comfort combined with corrosion and impact resistance, 953 is a gospel to steel lovers.For those who enjoy the riding quality of steel frame, and keen on corrosion-free property and lightness of titanium frame, Reynolds 953 frame is the choice.

Model: Rikulau 953 Road Bike – Integrated HT
Size
Seat Tube
Effective top tube
Chain stay
Head tube
Head tube angle
Seat tube
angle
BB drop
Wheelbase
Standover
Top Tube Angle
Weight (g)
C-T
C-C
(A)
(B)
(C)
(D)
(E)
(F)
(G)
(H)
(I)

XS
485
445
510
405
115
71.5
74
68
956.9
738.1
6
1.44
S
500
460
525
405
125
72
74
68
967
748
5.3
1.52
M
515
475
540
405
135
72.5
73.5
68
972
760
4.8
1.54
L
535
495
555
408
150
73
73
68
978.4
774
4.6
1.58
XL
555
515
570
410
165
73
73
68
993
792
4
1.61
XXL
575
535
585
410
180
73
72.5
68
1002
805
3.5
1.63
Note: all measurements in millimeter (mm) except head tube and seat tube angles in degrees.

Feature
  1. Integrated headtube – higher stiffness
  2. Flattened seat stay for more comfort
  3. Whole frame aged after welding for increased frame stiffness and homogeneity
Specs
  1. Integrated head tube for 1 1/8” fork steerer
  2. Tubing: Reynolds 953 for seven tubes
  3. 365 mm fork length; 43 mm rake
  4. 27.2 mm seat post
Model: 953 road bike
Item
Campagnolo Super Record 11S
Shimano Dura Ace9000
SRAM Red
Campagnolo Athena Carbon 11S
Shimano Ultegra
SRAM Force
frame
Reynolds 953 frame with 1 1/8 standard fork

Reynolds 953 frame with 1 1/8 standard fork

Handlebar
FSA K-Force Compact Carbon
FSA Energy Compact
Stem
FSA OS-99 Carbon
FSA OS-99
Headset
FSA IS-2 Carbon
FSA IS-2
Grip/Bar Tape
Rikulau
Rikulau
Fork
Easton EC-90SL
Easton EC-90SL
Saddle
Selle Italia
SLR titanium
Selle Italia
SLS
Seat post
FSA K-Force Light
RK-160 SB25, 27.2 mm
FSA SLK
RK-260 SB20, 27.2mm
Groupset
Super Record 11 S (5dumpfil, 12-27T)
DuraAce 9000 (5dumpfil, 12-28T)
Red (5dumpfil, 11-28T)
Athena Carbon EPS (5dumpfil, 12-27T)
Athena Carbon (5dumpfil, 12-27T)
Ultegra 6800 (5dumpfil, 11-28T)
Force (5dumpfil, 11-28T)
Seatpost clamp
Titanium CNC
Alloy CNC
Chain
KMC X10SL/
KMC X11SL
KMC X11VL/
KMC X10VL
Wheel set
Mavic Ksyrium SLS
Mavic Elite or
Orbit Baryon
Tires
Mavic Yksion Pro
Hutchinson Fusion 3 or
Mavic tire&tube

Note:
Rikulau reserves the right to updat components with those of equal or higher value.
