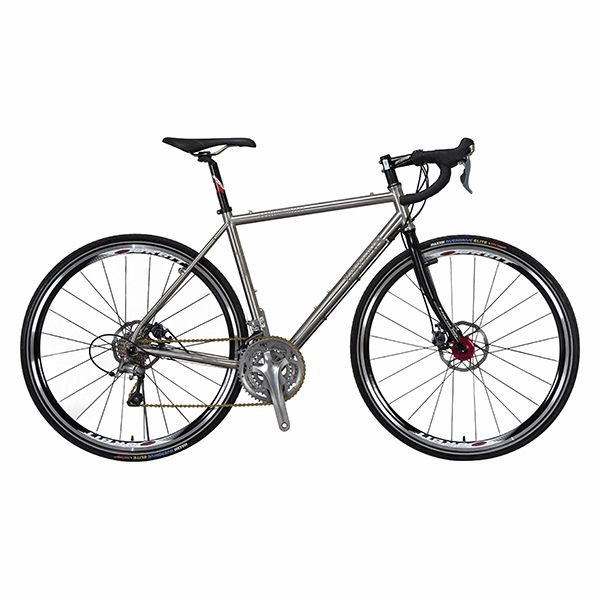

Rikulau 931 Cyclocross Bike
Reynolds 931 stainless steel is an alloy that has a balanced strength and ductility. It is a very versatile multi-purpose material.
Rikulau 931 cyclocross frame makes the most of the material property to provide a stiff and yet comfortable ride quality. The frame is designed to incorporate both disc and cantilever brake systems. Combined with specially designed dropouts, the frame works with a disc-version wheelset or an existing road wheelset. With rack mount and fender mount in place, this frame can even be used for long distance travel.
Features of Rikulau 931 cyclocross bike

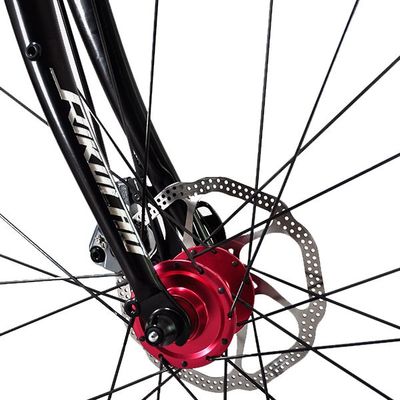

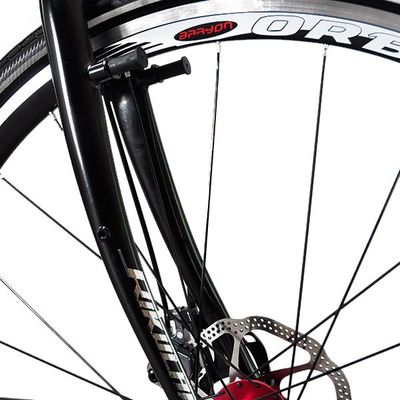

1. Cantilever and disc duo brake system
2. Specially designed hangers for 130 mm and 135 mm wheelset hubs
3. Can be used for cross country, road, and even long distance travel
Illusion
The design concept of “Illusion”follows the artistical style of Master Vasarely, who is recognized as one of the most important artists of the 20th century, and the leader of the Optical Art movement.
Presentation skills such as segmentation, distortion and projection are all used in the design to arouse 3D illusion from planar graphics.
Rikulau’s trade mark and brand name are also hidden in the design. They not only constitute a part of the structure but are also the main elements of illusive effect. The looming graphics added mystical effects to the bicycle frame.
Rikulau 931 cyclocross frame makes the most of the material property to provide a stiff and yet comfortable ride quality. The frame is designed to incorporate both disc and cantilever brake systems. Combined with specially designed dropouts, the frame works with a disc-version wheelset or an existing road wheelset. With rack mount and fender mount in place, this frame can even be used for long distance travel.
Features of Rikulau 931 cyclocross bike
1. Cantilever and disc duo brake system
2. Specially designed hangers for 130 mm and 135 mm wheelset hubs
3. Can be used for cross country, road, and even long distance travel
Illusion
The design concept of “Illusion”follows the artistical style of Master Vasarely, who is recognized as one of the most important artists of the 20th century, and the leader of the Optical Art movement.
Presentation skills such as segmentation, distortion and projection are all used in the design to arouse 3D illusion from planar graphics.
Rikulau’s trade mark and brand name are also hidden in the design. They not only constitute a part of the structure but are also the main elements of illusive effect. The looming graphics added mystical effects to the bicycle frame.
Reynolds 931 Stainless Steel
931 has a tensile strength near 1300 MPa, and a very good corrosion resistance and ductility. Therefore, with manipulation on tube thickness and tube size, a 931 frame can be as stiff as a 953 frame, as comfortable as a titanium touring frame, or as much fun as a CrMo fixed gear frame. It is a very versatile multi-purpose material.
931 has a tensile strength near 1300 MPa, and a very good corrosion resistance and ductility. Therefore, with manipulation on tube thickness and tube size, a 931 frame can be as stiff as a 953 frame, as comfortable as a titanium touring frame, or as much fun as a CrMo fixed gear frame. It is a very versatile multi-purpose material.
|
Model: Rikulau 931 Cyclocross Bike – Integrated HT
|
|||||||||||||
|
Size
|
Seat Tube
|
Effective top tube
|
Chain stay
|
Head tube
|
Head tube angle
|
Seat tube
angle |
BB drop
|
Top Tube Angle
|
FC
|
Standover
|
Wheelbase
|
Weight (kg)
|
|
|
C-T
|
C-C
|
||||||||||||
|
(A)
|
(B)
|
(C)
|
(D)
|
(E)
|
(F)
|
(G)
|
(H)
|
||||||
|
XS
|
450
|
410
|
510
|
425
|
110
|
71
|
74
|
65
|
13
|
569
|
754
|
986
|
|
|
S
|
480
|
440
|
525
|
425
|
120
|
71
|
74
|
65
|
9.7
|
585
|
761
|
1001
|
|
|
M
|
510
|
470
|
540
|
425
|
140
|
71.5
|
73.5
|
65
|
9.4
|
591
|
785
|
1007
|
|
|
L
|
540
|
500
|
555
|
425
|
160
|
72
|
73
|
65
|
8
|
596
|
809
|
1012
|
|
|
XL
|
570
|
530
|
570
|
425
|
180
|
72
|
73
|
65
|
7
|
611
|
833
|
1028
|
|
Note: all measurements in millimeter (mm) except head tube and seat tube angles in degrees.
Headset: Integrated; for 1 1/8” OD steerer
Seat post: 27.2 mm OD
Fork length: 400 mm
Headset: Integrated; for 1 1/8” OD steerer
Seat post: 27.2 mm OD
Fork length: 400 mm
|
Model: Reynolds 931 Road Touring Bike
|
|
|
Item
|
Shimano 105
|
|
frame
|
Reynolds 931 stainless steel frame
|
|
Handlebar
|
FSA Wing Compact
|
|
Stem
|
FSA Afterburner
|
|
Headset
|
FSA IS-2
|
|
Grip/Bar Tape
|
Rikulau
|
|
Fork
|
Rikulau CrMo fork
|
|
Saddle
|
Rikulau Ti rail, black
|
|
Seat post
|
FSA Energy SL-252 SB20, 27.2mm
|
|
Groupset
|
105 (5dumpfil, 11-28T)
|
|
Brake
|
BR-CX77 (Mechanic disc) or Tektro CR-710
|
|
Seatpost clamp
|
Alloy CNC
|
|
Chain
|
KMC X10L
|
|
Wheel set
|
Orbit Baryon CX-Disc
|
|
Tires
|
Maxxis Overdrive 700 x 35 C
|
Note: Rikulau reserves the right to updat components with those of equal or higher value.
1. Fork – Chromoly, 400 mm length, 45 mm rake, 1 1/8” fork steerer
2. Brake system – both mechanical disc brake and cantilever brake components included in complete bike spec list.
3. Wheelset system – Both 130 mm road and 135 mm wheelset systems. Two different sets of hangers included.
Upgrade selections:
1. Titanium fork 1. Fork – Chromoly, 400 mm length, 45 mm rake, 1 1/8” fork steerer
2. Brake system – both mechanical disc brake and cantilever brake components included in complete bike spec list.
3. Wheelset system – Both 130 mm road and 135 mm wheelset systems. Two different sets of hangers included.
Upgrade selections:
