| Main machine |
Main Machine |
Brochure Download |
|---|---|---|
| Size | 20.90 (cm)x 9.00 (cm)x 20.30 (cm) | |
| Weight | 500 Grams | |

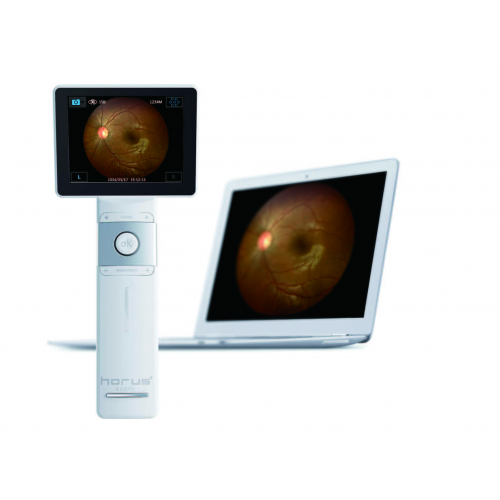

| Intended use | FOV 45 degree Hand-Held Digital Eye-Fundus Camera | |
| Fixation Targets | 7 internal Fixation Targets |
| Imaging system | Light source | Nature white LED light |
|---|---|---|
| Focus range | Auto Focus / Manual Focus -20D~+20D | |
| Sensor | CMOS | |
| Resolution | 5M Pixels (2592* 1944) | |
| Operating Distance | 24 mm |
| Screen | Integrated display | 3.5 " Full color TFT-LCD Touch Panel |
|---|
| Output | Live image export | AV out UVC live |
|---|---|---|
| Storage type | Micro SD card, 2GB and support to 32GB | |
| Image mode - Format - Capacity |
|
|
| Data transmit | 1.mini-USB 2.micro SD card reader |
| Power | Battery | 3.7 V/ 2500mAh Li-ion Battery with safety protection |
|---|---|---|
| Charger | By mini-USB | |
| Recharge mode | Continue charge in capture mode | |
| Energy indicator | 3 stage display | |
| Energy save | Yes |
| Operation system | Supported OS |
Windows XP, Windows 7/8, Android and i-OS |
|---|
