REF |

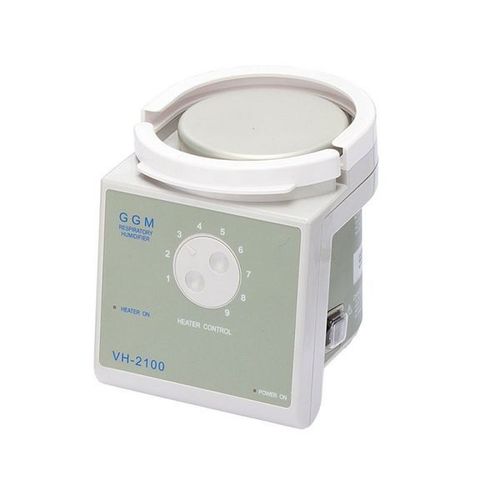

VH-2100-115 / VH-2100-230 |
|
Dimensions |
W135 x D170 x H156 mm |
|
Weight |
1.5 kg (w / o Chamber fitted) |
|
Appearance |
1) Stream-line design |
|
2) Water drainage design |
|
|
3) Compatible with other standard chambers |
|
|
Electrical Power |
1) Heater plate capacity : 150W max |
|
2) Temperature Power cutout at 93℃± 6℃ |
|
|
3) 230 ± 25V 0.7A max. at 230V |
|
|
4) 115V ± 12V 1.3 A max. at115V |
|
|
Temperature Setting |
From step 1 to step 9 |
|
Range 45℃ ~ 80℃ |
|
|
Heater Plate Overheat |
93℃ ± 5℃ |
|
Standards |
1) IEC / EN 60601-1 , IEC / EN 60601-1-2 |
|
2) ISO 8185:1997 |
|
|
Accessories |
VH-3144 Reu. Humidifier Chamber w / o Scroll |
|
Package Dimension |
12 sets per carton |
|
Carton : L65 x w46 x H36 cm |
