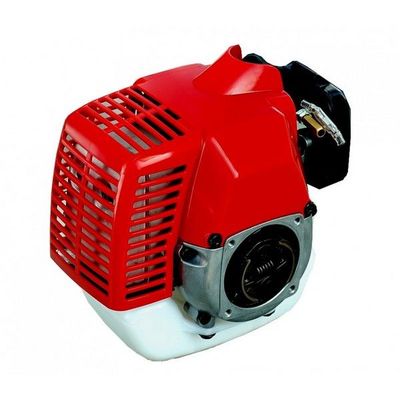

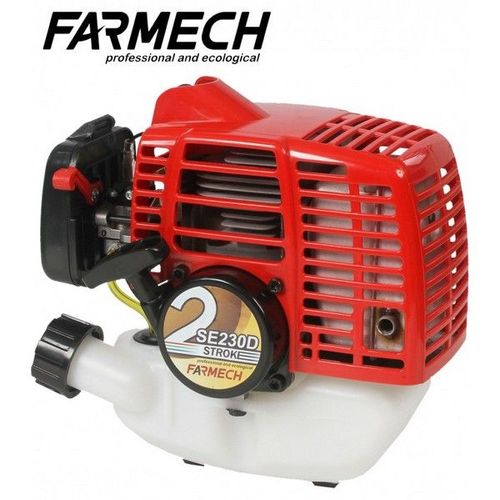

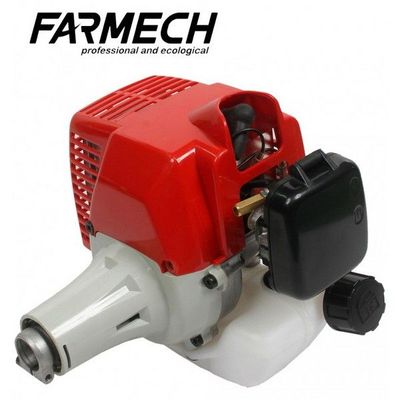

SE230D 2-stroke gasoline engine

The trimmer engine SE230D is low fuel consumption, durability and versatility, it can be used in different outdoor power equipment, like brush cutter, hedge trimmer tools, power sprayer. And its low weight makes it extremely flexible to use.

Product specification


1.      Engine type : Air cooled 2-stroke

2.      Displacement : 22.5 C.C.

3.      Fuel tank capacity : 0.6 liter

4.      Fuel mixture (petrol) : Mixed fuel of gasoline & 2 stroke oil at 25:1

5.      Cylinder : Single

6.      Bore & stroke : 32 x 28

7.      Carburetor : Walbro WYL155, diaphragm type, rotary valve

8.      Clutch system : Automatic centrifugal type (I.D. Φ54)

9.      Starter : Recoil start system

10.    Ignition : Solid state ignition

11.    Air cleaner : Semi-dry type

12.    Rotation : Counter clockwise (from PTO view)

13.    Torque : 0.92 N.M.

14.    Power : 0.6 K.W. / 7000 rpm

15.    Fuel flow : 0.54 liter/hour / 7000 rpm

16.    Dry weight : 2.4 kg

17.    Dimension : 148x228x224 mm

18.    Durability : over 300 hours
