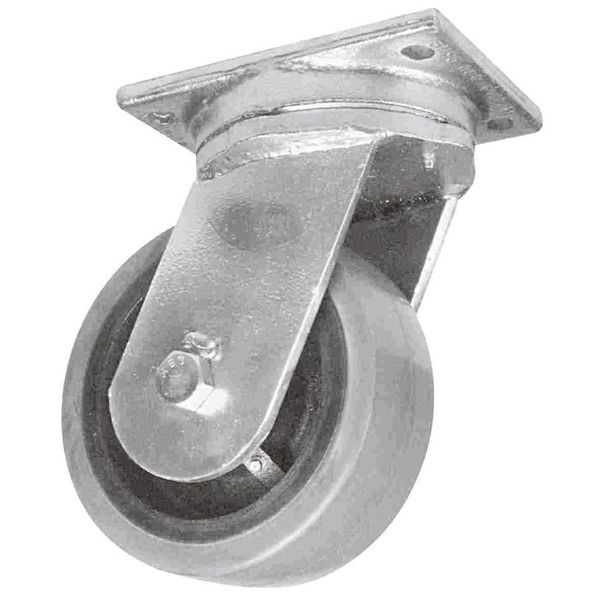

#KP 93 SERIES_KINGPINLESS CASTERS

KINGPINLESS CASTERS
CAPACITIES TO 20,000#
STANDARD FEATURES
THIS UNIQUE HOT FORGED ASTM1045 STEEL DESIGN
ELIMINATES PROBLEMS ASSOCIATED WITH KINGPIN FAILURE
DUE TO SEVERE SHOCK LOADING
TOP PLATE AND INNER RACEWAY ARE INTEGRALLY FORGED
CONSTRUCTION
PRECISION MACHINED AND INDUCTION HARDENED SEALED
RACEWAY PROVIDES EXCEPTIonALLY SMOOTH
PERFORMANCE
ZINC PLATED
GREASE FITTING ON RACEWAY
4 POSITION NOTCHES STANDARD
OVERALL TOP PLATE 6-1/4"x7-1/2"
MOUNTING BOLT DIAMETER: 1/2"
BOLT HOLE SPACING: 4-1/2" x 6" SLOTTED TO
4-1/8" x 6-1/8"
AXLE HOLE: 1" FOR 630,830,1030,& 1230
1-1/4" FOR 640,840,1040,&1240
APPLICATIONS
wherVER SEVERE SHOCK ENVIRONMENTS
ARE ANTICIPATED
