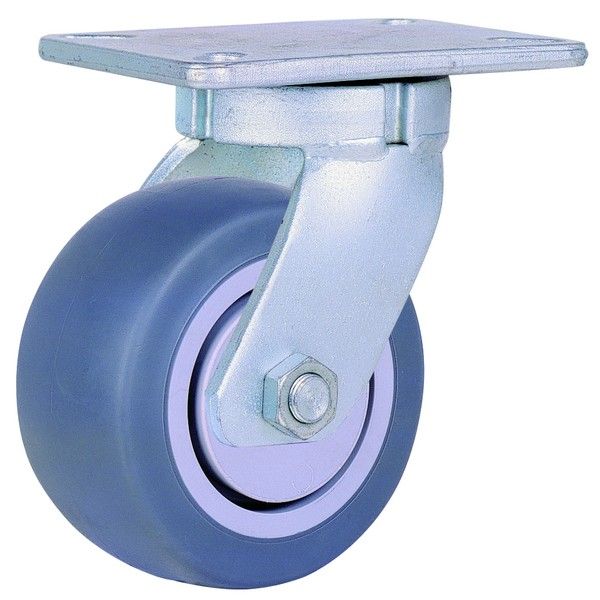

| KINGPINLESS CASTERS | |||
| CAPACITIES TO 6,000# | |||
| STANDARD FEATURES | |||
| THIS UNIQUE HOT FORGED ASTM1045 STEEL DESIGN | |||
| ELIMINATES PROBLEMS ASSOCIATED WITH KINGPIN FAILURE | |||
| DUE TO SEVERE SHOCK LOADING | |||
| TOP PLATE AND INNER RACEWAY ARE INTEGRALLY FORGED | |||
| CONSTRUCTION | |||
| PRECISION MACHINED AND INDUCTION HARDENED SEALED | |||
| RACEWAY PROVIDES EXCEPTIonALLY SMOOTH | |||
| PERFORMANCE | |||
| 1/2" DIAMETER HRC45 STEEL BALL BEARINGS ABSORB | |||
| THRUST AND LOAD IN SEVERE ENVIRONMENTS | |||
| ZINC PLATED | |||
| GREASE FITTING ON RACEWAY | |||
| 4 POSITION NOTCHES STANDARD (BSL) | |||
| APPLICATIONS | |||
| wherVER SEVERE SHOCK ENVIRONMENTS ARE ANTICIPATED |
|||
| TOP PLATE DIMENSIONS AND BOLT HOLE PATTERN | |||
| 4-1/2x6-1/4 TOP PLATE | |||
| BOLT HOLE PATTERN SLOTTED 2-7/16x4-15/16 | |||
| TO 3-3/8x5-1/4 | |||
| ATTACHING BOLT SIZE 1/2" | |||
