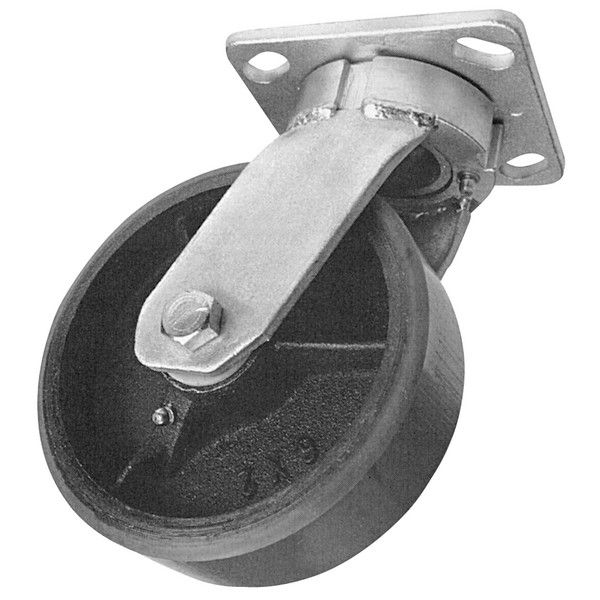

#KP 35 SERIES_MEDIUM/HEAVY DUTY KINGPINLESS SWIVEL CASTERS

MEDIUM/HEAVY DUTY KINGPINLESS SWIVEL CASTERS
CAPACITIES TO 2,000#
STANDARD FEATURES
THIS UNIQUE HOT FORGED ASTM1045 STEEL DESIGN
ELIMINATES PROBLEMS ASSOCIATED WITH KINGPIN
FAILURE DUE TO SEVERE SHOCK L0ADING
TOP PLATED AND INNER RACEWAY ARE INTEGRALLY
FORGED CONSTRUCTION
PRECISION MACHINED AND INDUCTION HARDENED
SEALED RACEWAY PROVIDES EXCEPTIONALLY
SMOOTH PERFORMANCE
3/8" DIAMETER HRC45 STEEL BALL BEARING ABSORB
THRUST AND LOAD IN SEVERE ENVIRONMENTS
ZINK PLATED
GREASE FITTING IN SWIVEL RACEWAY
APPLICATIONS
wherVER SEVERE SHOCK LOADS ARE ANTICIPATED
BRAKE OPTIONS
SLB-SIDE LOCK BRAKE
FCB-FACE ConTACT BRAKE
4 POSITION SWIVEL LOCK (BSL)
BEARING OPTIONS
R-ROLLER BEARING
D-DELRIN
P-PRECISION
B-BALL BEARING
S-SLEEVE  or PLAIN BEARING

Diameter	Width	Wheel Material	Capacity(lbs.)	Load Height	Swivel Number	Swivel Weight	Bearing Type
4	2	LOW PROFILE RUBBER ON STEEL	300	5-5/8	LF-KP35S420-LRSR	6.16	ROLLER
		RUBBER ON STEEL	300		LF-KP35S420-RSR	6.16	ROLLER
		RUBBER ON ALUMINUM	400		LF-KP35S420-RAR	5.06	ROLLER
		RUBBER ON POLYOLEFIN	450		LF-KP35S420-TPRR	3.96	ROLLER
		POLY U/POLYOLEFIN	700		LF-KP35S420-PPUR	3.96	ROLLER
		POLYURETHANE/STEEL	700		LF-KP35S420-PUR	6.16	ROLLER
		SOLID POLYURETHANE	700		LF-KP35S420-SPUR	3.96	ROLLER
		POLY ON ALUMINUM	700		LF-KP35S420-PAR	5.06	ROLLER
		EASY ROLLING PU ON STEEL	700		LF-KP35S420-EZPUR	6.75	ROLLER
		SEMI STEEL	700		LF-KP35S420-SSR	5.72	ROLLER
		HEAVY DUTY STEEL	900		LF-KP35S420-SSR-HD	6.72	ROLLER
		DonUT TREAD POLYURETHANE	600		LF-KP35S420-DPRR	3.96	ROLLER
		NYLON	500		LF-KP35S420-NR	3.96	ROLLER
		DUCTILE STEEL	1500		LF-KP35S420-DSR	7.51	ROLLER
		EZROLLING DUCTILE STEEL	1500		LF-KP35S420-CDSR	7.05	ROLLER
		V-GROOVE	1000		LF-KP35S420-VGR	6.71	ROLLER
		POLYOLEFIN	450		LF-KP35S420-POR	5.06	ROLLER
		PHENOLIC	800		LF-KP35S420-PHR	5.25	ROLLER
		HIGH TEMP PHENOLIC	800		LF-KP35S420-PHR-HT	5.25	ROLLER
5	2	RUBBER ON STEEL	450	6-1/2	LF-KP35S520-RSR	6.16	ROLLER
		RUBBER ON ALUMINUM	500		LF-KP35S520-RAR	5.75	ROLLER
		RUBBER ON POLYOLEFIN	500		LF-KP35S520-TPRR	4.62	ROLLER
		POLY U/POLYOLEFIN	750		LF-KP35S520-PPUR	4.62	ROLLER
		POLYURETHANE/STEEL	1200		LF-KP35S520-PUR	6.60	ROLLER
		SOLID POLYURETHANE	1000		LF-KP35S520-SPUR	4.62	ROLLER
		POLY ON ALUMINUM	900		LF-KP35S520-PAR	5.28	ROLLER
		EASY ROLLING PU ON STEEL	1000		LF-KP35S520-EZPUR	7.01	ROLLER
		SEMI STEEL	1000		LF-KP35S520-SSR	7.92	ROLLER
		HEAVY DUTY STEEL	1000		LF-KP35S520-SSR-HD	9.01	ROLLER
		DonUT TREAD POLYURETHANE	900		LF-KP35S520-DPRR	5.91	ROLLER
		ELASTOMER	1000		LF-KP35S520-EP	5.51	PRECISION
		NYLON	700		LF-KP35S520-NR	5.51	ROLLER
		DUCTILE SETTL	1500		LF-KP35S520-DSR	9.25	ROLLER
		EZROLLING DUCTILE STEEL	1500		LF-KP35S520-CDSR	9.01	ROLLER
		V-GROOVE	1100		LF-KP35S520-VGR	8.58	ROLLER
		POLYOLEFIN	650		LF-KP35S520-POR	4.62	ROLLER
		PHENOLIC	1000		LF-KP35S520-PHR	5.75	ROLLER
		HIGH TEMP PHENOLIC	1000		LF-KP35S520PHR-HT	5.75	ROLLER
6	2	LOW PROFILE RUBBER ON STEEL	600	7-1/2	LF-KP35S620-LRSR	8.75	ROLLER
		RUBBER ON STEEL	500		LF-KP35S620-RSR	7.71	ROLLER
		RUBBER ON ALUMINUM	550		LF-KP35S620-RAR	6.61	ROLLER
		RUBBER ON POLYOEFIN	550		LF-KP35S620-TPRR	5.06	ROLLER
		POLY U/POLYOLEFIN	900		LF-KP35S620-PPUR	5.06	ROLLER
		POLYURETHANE/STEEL	1200		LF-KP35S620-PUR	8.58	ROLLER
		SOLID POLYURETHANE	1200		LF-KP35S620-SPUR	5.06	ROLLER
		POLY ON ALUMINUM	1000		LF-KP35S620-PAR	6.01	ROLLER
		EASY ROLLING PU ON STEEL	1200		LF-KP35S620-EZPUR	9.01	ROLLER
		SEMI STEEL	1100		LF-KP35S620-SSR	8.58	ROLLER
		HEAVY DUTY STEEL	1200		LF-KP35S620-SSR-HD	9.61	ROLLER
		DUCTILE STEEL	1500		LF-KP35S620-DSR	9.61	ROLLER
		DonUT TREAD POLYURETHANE	1000		LF-KP35S620-DPRR	5.91	ROLLER
		ELASTOMER	1200		LF-KP35S620-EP	5.51	PRECISION
		NYLON	800		LF-KP35S620-NR	5.51	ROLLER
		GRAY DonUT RUBBER/ALUMINUM	420		LF-KP35S620-RAR-GD	6.41	ROLLER
		GRAY DonUT RUBBER/STEEL	420		LF-KP35S620-RSR-GD	6.91	ROLLER
		EZROLLING DUCTILE STEEL	2000		LF-KP35S620-CDSR	6.91	ROLLER
		V-GROOVE	1200		LF-KP35S620-VGR	10.12	ROLLER
		POLYOLEFIN	750		LF-KP35S620-POR	5.06	ROLLER
		PHENOLIC	1200		LF-KP35S620-PHR	7.51	ROLLER
		HIGH TEMP PHENOLIC	1200		LF-KP35S620-PHR-HT	7.51	ROLLER
8	2	LOW PROFILE RUBBER ON STEEL	600	9-1/2	LF-KP35S820-LRSR	11.75	ROLLER
		RUBBER ON STEEL	500	&	LF-KP35S820-RSR	9.68	ROLLER
		RUBBER ON ALUMINUM	550	10-1/8	LF-KP35S820-RAR	7.51	ROLLER
		RUBBER ON POLYOEFIN	550		LF-KP35S820-TPRR	5.51	ROLLER
		POLY U/POLYOLEFIN	900		LF-KP35S820-PPUR	5.51	ROLLER
		POLYURETHANE/STEEL	1200		LF-KP35S820-PUR	12.11	ROLLER
		SOLID POLYURETHANE	1400		LF-KP35S820-SPUR	5.51	ROLLER
		POLY ON ALUMINUM	1000		LF-KP35S820-PAR	5.51	ROLLER
		EASY ROLLING PU ON STEEL	1500		LF-KP35S820-EZPUR	13.11	ROLLER
		SEMI STEEL	1200		LF-KP35S820-SSR	13.11	ROLLER
		HEAVY DUTY STEEL	1200		LF-KP35S820-SSR-HD	13.11	ROLLER
		DUCTILE STEEL	2000		LF-KP35S820-DSR	13.11	ROLLER
		DonUT TREAD POLYURETHANE	1200		LF-KP35S820-DPRR	5.91	ROLLER
		ELASTOMER	1200		LF-KP35S820-EP	5.51	PRECISION
		NYLON	1200		LF-KP35S820-NR	5.51	ROLLER
		GRAY DonUT RUBBER/ALUMINUM	500		LF-KP35S820-RAR-GD	6.41	ROLLER
		GRAY DonUT RUBBER/STEEL	500		LF-KP35S820-RSR-GD	6.91	ROLLER
		EZROLLING DUCTILE STEEL	2000		LF-KP35S820-CDSR	13.11	ROLLER
		V-GROOVE	1200		LF-KP35S820-VGR	14.74	ROLLER
		POLYOLEFIN	1000		LF-KP35S820-POR	5.51	ROLLER
		PHENOLIC	1400		LF-KP35S820-PHR	7.75	ROLLER
		HIGH TEMP PHENOLIC	1400		LF-KP35S820-PHR-HT	7.75	ROLLER

For more details, please direct inquiry to us, Thank You !
