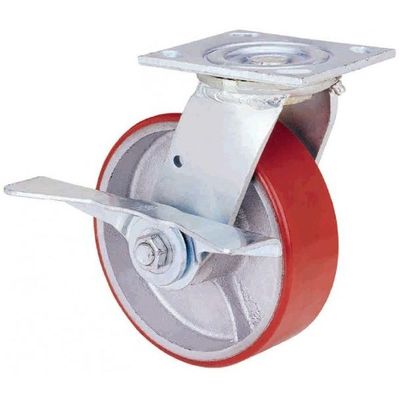

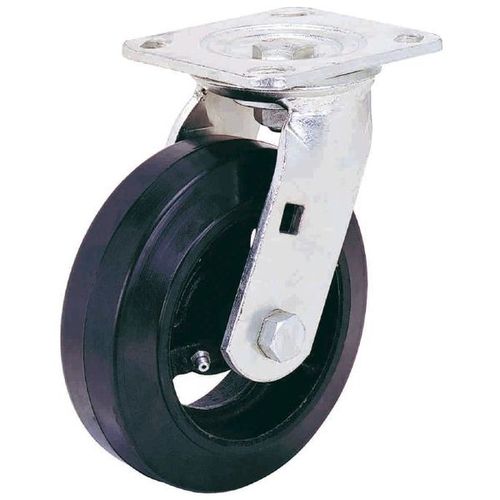

| MEDIUM/HEAVY DUTY CASTERS | |||
| CAPACITIES TO 1,250# | |||
| STANDARD FEATURES | |||
| DOUBLE BALL BEARING RACEWAY HEAT TREATED FOR LONG | |||
| WEAR AND ADDED STRENGTH | |||
| BRIGHT ZINC PLATED | |||
| 5/8" BOLTED KING PIN | |||
| TOP PLATE AND YOKE 1/4" COLD FORGED STEEL | |||
| 1/2" DIAMETER AXLE BOLT WITH LOCK NUT | |||
| 3/4" ROLLER BEARINGS WITH HARDENED | |||
| OUTER RACEWAY | |||
| HARDENED SPANNER BUSHING WITH HOLE | |||
| AND GREASE GROOVE | |||
| GREASE FITTINGS IN SWIVEL RACEWAY AND WHEEL | |||
| WIDE SELECTION OF WHEEL TYPES | |||
| APPLICATIONS | |||
| PLATFORM TRUCKS | |||
| WAREHOUSE CARTS | |||
| DOLLIES (MACHINERY) | |||
| STOCK PICKING TRUCKS | |||
| FREIGHT TERMINAL | |||
| FOOD SERVICE CARTS | |||
| HOTEL/HOUSEKEEPING CARTS | |||
| EXCELLENT SERIES FOR INDUSTRIAL AND | |||
| COMMERCIAL MEDIUM/HEAVY DUTY EQUIPMENT | |||
| OPTIONS | |||
| 4 POSITION SWIVEL LOCKS (WSL) , (BSL) | |||
| FLANGED DELRIN or BALL BEARINGS | |||
| NEOPRENE GREASE SEALS FOR WHEEL | |||
| SEALED SWIVEL RACEWAY | |||
| ZERK AXLE | |||
| THREAD GUARDS | |||
| OPTIonAL WHEEL BRAKE | |||
| SLB-SIDE LOCK BRAKE | |||
| TTL-TOTAL LOCK BRAKE | |||
| PLB-POSI LOCK BRAKE | |||
| TLB-TOP LOCK BRAKE | |||
| FCB-FACE ConTACT BRAKE | |||
| BEARING OPTIONS | |||
| R-ROLLER BEARING | |||
| D-DELRIN | |||
| P-PRECISION | |||
| B-BALL BEARING | |||
| S-SLEEVE or PLAIN BEARING | |||
| Diameter | Width | Wheel Material | Capacity(lbs.) | Load Height | Swivel Number | Swivel Weight | Rigid Number | Rigid Weight | Bearing Type |
| 6 | 1-1/2 | RUBBER ON STEEL | 450 | 7-1/2 | LF-30S615-RSR | 7.50 | LF-30R615-RSR | 6.50 | ROLLER |
| RUBBER ON POLYOLEFIN | 400 | LF-30S615-TPRR | 5.00 | LF-30R615-TPRR | 4.00 | ROLLER | |||
| POLY U/POLYOLEFIN | 500 | LF-30S615-PPUR | 5.00 | LF-30R615-PPUR | 4.00 | ROLLER | |||
| POLYURETHANE/STEEL | 800 | LF-30S615-PUR | 8.25 | LF-30R615-PUR | 7.25 | ROLLER | |||
| POLY ON ALUMINUM | 900 | LF-30S615-PAR | 5.50 | LF-30R615-PAR | 4.50 | ROLLER | |||
| SEMI STEEL | 700 | LF-30S615-SSR | 7.75 | LF-30R615-SSR | 6.75 | ROLLER | |||
| EASY ROLLING PU ON STEEL | 800 | LF-30S615-EZPUR | 9.00 | LF-30R615-EZPUR | 8.00 | ROLLER | |||
| PHENOLIC | 800 | LF-30S615-PHR | 5.14 | LF-30R615-PHR | 4.14 | ROLLER | |||
| 6 | 2 | LOW PROFILE RUBBER ON STEEL | 600 | 7-1/2 | LF-30S620-LPR | 8.75 | LF-30R620-LPR | 7.32 | ROLLER |
| RUBBER ON STEEL | 450 | LF-30S620-RSR | 7.70 | LF-30R620-RSR | 6.27 | ROLLER | |||
| RUBBER ON ALUMINUM | 550 | LF-30S620-RAR | 6.50 | LF-30R620-RAR | 5.07 | ROLLER | |||
| RUBBER ON POLYOLEFIN | 450 | LF-30S620-TPRR | 5.06 | LF-30R620-TPRR | 3.63 | ROLLER | |||
| POLY U/POLYOLEFIN | 900 | LF-30S620-PPUR | 5.06 | LF-30R620-PPUR | 3.63 | ROLLER | |||
| POLYURETHANE/STEEL | 1200 | LF-30S620-PUR | 8.58 | LF-30R620-PUR | 7.15 | ROLLER | |||
| SOLID POLYURETHANE | 1200 | LF-30S620-SPUR | 5.06 | LF-30R620-SPUR | 3.63 | ROLLER | |||
| POLY ON ALUMINUM | 1200 | LF-30S620-PAR | 6.00 | LF-30R620-PAR | 4.07 | ROLLER | |||
| CUSHION PU/POLYOLEFIN | 900 | LF-30S620-SCR | 5.06 | LF-30R620-SCR | 4.06 | ROLLER | |||
| EASY ROLLING PU ON STEEL | 1200 | LF-30S620-EZPUR | 9.00 | LF-30R620-EZPUR | 8.00 | ROLLER | |||
| SEMI STEEL | 1250 | LF-30S620-SSR | 8.85 | LF-30R620-SSR | 7.15 | ROLLER | |||
| HEAVY DUTY STEEL | 1200 | LF-30S620-SSR-HD | 9.60 | LF-30R620-SSR-HD | 8.60 | ROLLER | |||
| DUCTILE STEEL | 1250 | LF-30S620-DSR | 9.60 | LF-30R620-DSR | 8.60 | ROLLER | |||
| EZROLLING DUCTILE STEEL | 1200 | LF-30S620-CDSR | 9.60 | LF-30R620-CDSR | 8.60 | ROLLER | |||
| V-GROOVE | 1200 | LF-30S620-VGR | 10.12 | LF-30R620-VGR | 8.69 | ROLLER | |||
| POLYOLEFIN | 700 | LF-30S620-POR | 5.06 | LF-30R620-POR | 3.63 | ROLLER | |||
| PHENOLIC | 1200 | LF-30S620-PHR | 7.50 | LF-30R620-PHR | 6.07 | ROLLER | |||
| HIGH TEMP PHENOLIC | 1200 | LF-30S620-PHR-HT | 7.50 | LF-30R620-PHR-HT | 6.50 | ROLLER | |||
| 8 | 2 | LOW PROFILE RUBBER ON STEEL | 700 | 9-1/2 | LF-30S820-LPR | 11.75 | LF-30R820-LPR | 10.32 | ROLLER |
| RUBBER ON STEEL | 500 | LF-30S820-RSR | 9.68 | LF-30R820-RSR | 8.25 | ROLLER | |||
| RUBBER ON ALUMINUM | 600 | LF-30S820-RAR | 7.50 | LF-30R820-RAR | 9.04 | ROLLER | |||
| RUBBER ON POLYOLEFIN | 500 | LF-30S820-TPRR | 5.50 | LF-30R820-TPRR | 4.07 | ROLLER | |||
| POLY U/POLYOLEFIN | 950 | LF-30S820-PPUR | 5.50 | LF-30R820-PPUR | 4.07 | ROLLER | |||
| POLYURETHANE/STEEL | 1250 | LF-30S820-PUR | 12.10 | LF-30R820-PUR | 10.67 | ROLLER | |||
| SOLID POLYURETHANE | 1200 | LF-30S820-SPUR | 5.50 | LF-30R820-SPUR | 4.07 | ROLLER | |||
| POLY ON ALUMINUM | 1250 | LF-30S820-PAR | 5.50 | LF-30R820-PAR | 4.07 | ROLLER | |||
| CUSHION PU/POLYOLEFIN | 900 | LF-30S820-SCR | 5.50 | LF-30R820-SCR | 4.50 | ROLLER | |||
| EASY ROLLING PU ON STEEL | 1200 | LF-30S820-EZPUR | 13.10 | LF-30R820-EZPUR | 12.10 | ROLLER | |||
| SEMI STEEL | 1250 | LF-30S820-SSR | 12.10 | LF-30R820-SSR | 10.67 | ROLLER | |||
| HEAVY DUTY STEEL | 1200 | LF-30S820-SSR-HD | 13.10 | LF-30R820-SSR-HD | 12.10 | ROLLER | |||
| DUCTILE STEEL | 1200 | LF-30S820-DSR | 13.10 | LF-30R820-DSR | 12.10 | ROLLER | |||
| EZROLLING DUCTILE STEEL | 1200 | LF-30S820-CDSR | 13.10 | LF-30R820-CDSR | 12.10 | ROLLER | |||
| V-GROOVE | 1200 | LF-30S820-VGR | 14.74 | LF-30R820-VGR | 13.31 | ROLLER | |||
| POLYOLEFIN | 900 | LF-30S820-POR | 5.50 | LF-30R820-POR | 4.07 | ROLLER | |||
| PHENOLIC | 1250 | LF-30S820-PHR | 7.75 | LF-30R820-PHR | 6.32 | ROLLER |
