| STANDARD FEATURES | |||||||||
| DEEPLY EMBOSSED SINGLE BALL RACEWAY | |||||||||
| ZINC PLATED | |||||||||
| PRECISION KING PIN FOR THRUST ABSORPTION | |||||||||
| ALL #10 SERIES CASTERS PLAIN BORE or STEEL SLEEVE BEARING | |||||||||
| APPLICATIONS | |||||||||
| DOLLIES | |||||||||
| PARTS BINS | |||||||||
| PORTABLE STORAGE RACKS | |||||||||
| LIGHTER GENERAL DUTY USE | |||||||||
| LAUNDRY CARTS | |||||||||
| BAKERY RACKS | |||||||||
| FOOD SERVICE OPERATIONS | |||||||||
| ROLLING TOOL BOXES | |||||||||
| OPTIONS | |||||||||

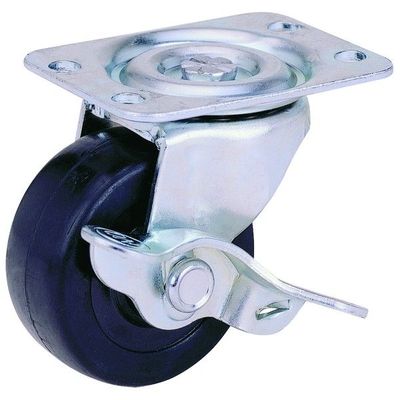

| SIDE LOCK BRAKE (SWIVELS ONLY) | |||||||||
| STEM OPTIONS | |||||||||
| D-DELRIN | |||||||||
| B-BALL BEARING | |||||||||
| S-SLEEVE or PLAIN BEARING | |||||||||
 |
|||||||||
| Diameter | Width | Wheel Material | Capacity(lbs.) | Load Height |
Swivel Number | Swivel Weight |
Rigid Number | Rigid Weight | Bearing Type |
| SOFT RUBBER | 90 | LF-10S210-SRS | 0.45 | LF-10R210-SRS | 0.33 | PLAIN BORE | |||
| 2 | 15/16 | HARD RUBBER | 125 | 2-7/16 | LF-10S210-HRS | 0.45 | LF-10R210-HRS | 0.33 | PLAIN BORE |
| SINTERED IRON | 125 | LF-10S210-SIS | 0.50 | LF-10R210-SIS | 0.40 | PLAIN BORE | |||
| POLYOLEFIN | 90 | LF-10S210-POS | 0.45 | LF-10R210-POS | 0.33 | PLAIN BORE | |||
| SOFT RUBBER | 100 | LF-10S2510-SRS | 1.00 | LF-10R2510-SRS | 0.73 | PLAIN BORE | |||
| 2-1/2 | 1-1/16 | HARD RUBBER | 175 | 3-1/4 | LF-10S2510-HRS | 1.00 | LF-10R2510-HRS | 0.73 | PLAIN BORE |
| SINTERED IRON | 200 | LF-10S2510-SIS | 1.15 | LF-10R2510-SIS | 0.98 | PLAIN BORE | |||
| POLYOLEFIN | 175 | LF-10S2510-POS | 0.90 | LF-10R2510-POS | 0.63 | PLAIN BORE | |||
| SOFT RUBBER | 150 | LF-10S314-SRS | 1.98 | LF-10R314-SRS | 1.98 | STEEL SLEEVE | |||
| HARD RUBBER | 275 | LF-10S314-HRS | 1.98 | LF-10R314-HRS | 1.98 | STEEL SLEEVE | |||
| POLYOLEFIN | 275 | LF-10S314-POS | 1.54 | LF-10R314-POS | 1.54 | PLAIN BORE | |||
| 3 | 1-1/4 | SOLID POLYURETHANE | 250 | 3-5/8 | LF-10S314-SPUS | 1.98 | LF-10R314-SPUS | 1.98 | STEEL SLEEVE |
| SEMI STEEL | 275 | LF-10S314-SSS | 2.20 | LF-10R314-SSS | 2.20 | PLAIN BORE | |||
| PHENOLIC | 275 | LF-10S314-PHS | 2.00 | LF-10R314-PHS | 1.90 | PLAIN BORE | |||
| SINTERED IRON | 250 | LF-10S314-SIS | 2.20 | LF-10R314-SIS | 2.20 | PLAIN BORE | |||
| SOFT RUBBER | 200 | LF-10S414-SRS | 3.08 | LF-10R414-SRS | 3.08 | STEEL SLEEVE | |||
| 4 | 1-1/4 | HARD RUBBER | 300 | 5 | LF-10S414-HRS | 3.08 | LF-10R414-HRS | 3.08 | STEEL SLEEVE |
| SEMI STEEL | 400 | LF-10S414-SSS | 4.40 | LF-10R414-SSS | 4.40 | PLAIN BORE | |||
