Input voltage: 380V(3-phase) or customized
Rated power: 18KVA
Cooling: Natural cooling
Air flow: 250L/min
Air pressure: 0.6-0.8MPa
Wire thickness: 2.8mm-6mm
Min ring diameter: a. 88mm (wire thickness less than 4mm) b. 90mm (wire thickness between 4 mm and 5mm) c. 105mm (wire thickness between 5mm and 6mm)
Throughput:
Ring diameter tolerance: less than 0.16mm
Weight: 1200KG
Features:

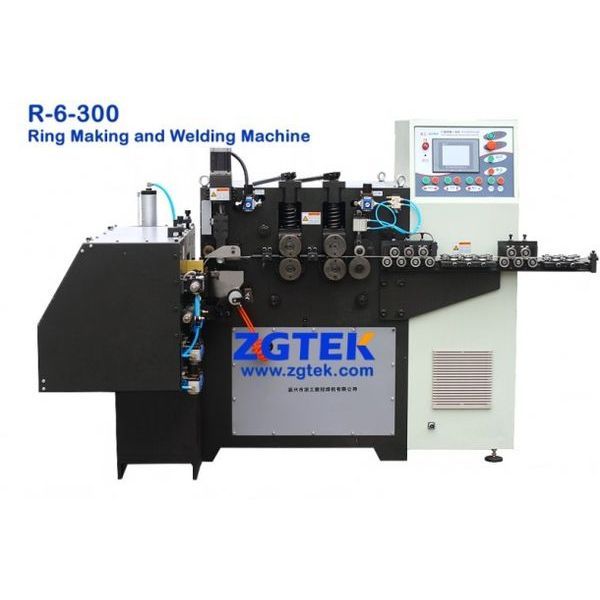

2nd Generation Ring Making and Welding Machine R-6-300
Two years ago, the release of ring making and welding integrated machine had been the first of its kind in China; now, the 2nd generation machine is even more powerful:
1. High precision: intelligent "S" shape speed curve, the encoder and the servo motor form a closed-loop wire feeding control system, secure a diameter tolerance less than 0.16mm, eventually solve the ring precision issues inherent in the traditional mechanical or hydraulic ring making machines.
2. Advanced and reliable wire feeding: the feeding unit includes a high-end servo motor and a planetary reducer, works on the basis of "dual-drive".
3. Automatic ring making: sizes can be adjusted automatically, worker attendance is not required during machine running
4. Compatible welding: capable of welding low, medium and high carbon steel, spring steel, galvanized steel; if equipped with a TIG unit, it can also weld stainless steel and titanium rings.
5. Easy operation and maintenance: user-friendly interface on touch screen, easy to adjust, operate and diagnose the machine.
