SEQUENCE OF OPERATION:

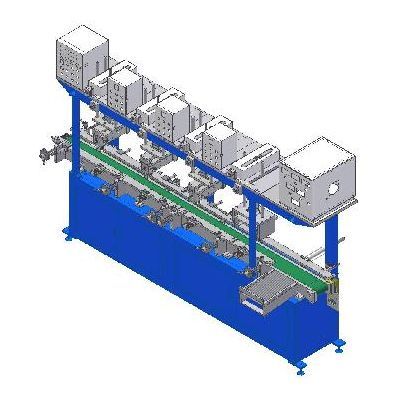

After the battery is completed the process of welding, this battery will be delivered to the waiting gate of this testing machine, and conveyed into the testing position once time is ready the testing head (tooling) will move up and down automatically to process the continuous testing under fully automatic operation. If bad-weld condition was found, test value was out of range in any cell or exploded lead was sprayed in any cell was found, the machine will alarm and the conveyor will push the battery into the rejection area. After the completion of rejection cycle or testing cycle, the machine will continue next operation.
FEATURE:
* The operation and adjustment of shear force are easy, and can get the accurate check.
*It is easy to change the test tooling (mold) of this machine.
* It is suitable to test all types of motorcycle battery.
* It is equipped with the system of auto-stop of no feeding and auto-start of refeeding to avoid idle operation.
DIMENSION AND WEIGHT:
* Approx. 3295(L) x 1200(W) x 1880(H) mm
* Approx. 1200 kgs
