iColor8 is the brother of iColor7 with color TFT screen for Time & Attendance and Access Control applications. Users will benefit from its unparalleled performance, ease-of-use, precision and faster matching speed based on fastest algorithms with dependability and accuracy. Its identification speed
is improved obviously, process 3000, 5000, even 10000 fingerprints within 0.6 second.

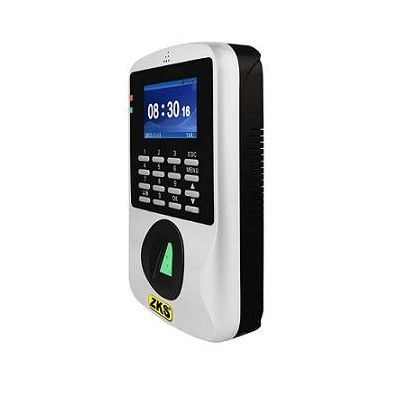

iColor8 -Color TFT time attendance and access control system
TCP/IP, USB, Embedded alarm clock, EM card or MIFARE Card, 3000 fingerprint templates
New version of ZKS algorithms with dependability and accuracy, identification speed obviously improved, process 3,000 fingerprints, no matter good or poor, within 0.6 second
Built in embedded standalone ARM9 module (ZKS900) with big capacity FLASH, it is easy to integrate with various systems.
ARM9 platform support enterprise VPN
Alarm clock function for giving the correct time for ON and OFF.
Single door control function
Optional integrated proximity or smart card reader
Built-in USB, WEIGAND out and Ethernet ports
SDK available for OEM customers and software developers.
Accept ODM or OEM, providing system local voice, menu language, software analysis, casing-making.
Technical Parameters:
User capacity: 3, 000
Transaction Storage: 80000
Period of data: Keep data for 3 years without current
Support Baud rate: 9600BPS, 19200BPS, 38400 BPS
Verification mode: 1: N, 1:1
FAR: <0. 0001%
FRR: <0. 01%
Response time: <0. 6 second
Alarm clock: Embedded alarm clock
External functions: Connect Electronic lock (Access Control), Electronic bell
Communications: TCP/IP, USB and WEIGAND output
Access Control: Support 50 time zone, 5 group and 10 unlock combinations
Show: Time, ID number, Name
LCD: 320*240 graphic display LCD
Language: English, French, Spanish, Czech, Indonesian, Portuguese, Turkish and so on
Working mode: Time & attendance, standalone, can work persistently
Time & Attendance mode: Fingerprint, password, card, fingerprint + password, fingerprint + card
Save function: Turn off device automatically for saving
Size: 178*128*55mm
Power supply: DC12V, 1A (AC 100V to 240 V, 50 to 60 Hz)
Warranty of period: 24 months
Temperature and humidity: 0 - 45, 20%-80%
Options: Proximity or MIFARE one card, backup battery
Applications: Office / hotel / hospital / bank / prison / school etc.
