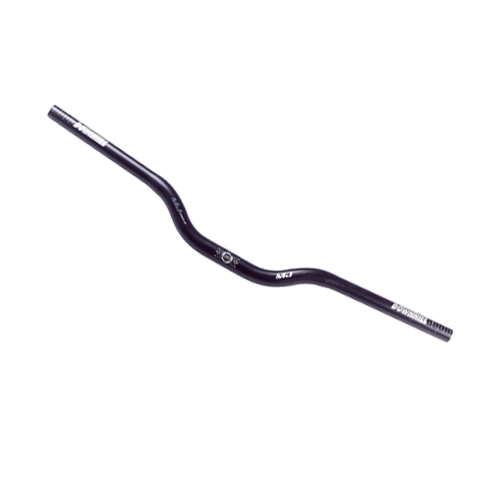

MJ-3526 SERIES
COMMON SPECIFICATIONS
WIDTH (mm) : 680.
RISE (mm) : 38 / 60.
UPSWEEP : 8 degrees
BACKSWEEP : 9 degrees
MJ-3526-60
MATERIAL : Double-butted 6061 T6 alloy.
BAR CENTER (mm) : 25.4 (3.2 / 2.4).
BAR CENTER (mm) : 31.8 (2.8 / 2.4).
MJ-3526-70
MATERIAL : Double-butted 7050 T73 alloy.
BAR CENTER (mm) : 25.4 (2.8 / 1.4).
BAR CENTER (mm) : 31.8 (2.4 / 1.4).
