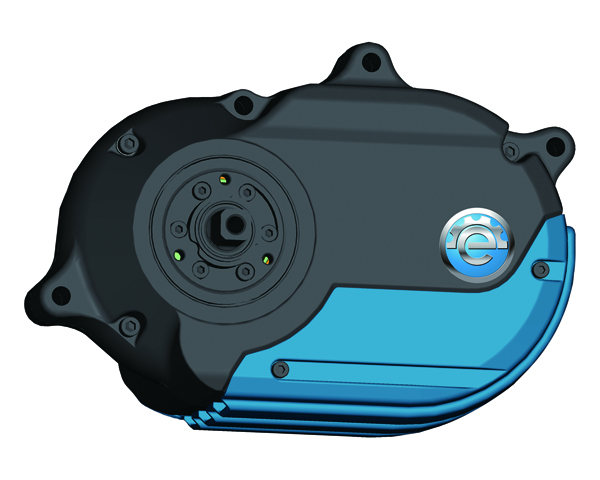

The MPF DRIVE 5.0 is a new developed e-motor system in Magnesium technology. Its excellence is based on the patented electro engine and the patented crank torque sensor.
Beside the crank torque sensor, crank speed and bicycle speed are recorded and give their input to the processing unit. The required power output of the motor for actual driving situations is then calculated in real time. This provides the bicycle rider in every driving situation with the right motor support without any further input.
The powerful and high torque balanced performance will impress e-bike riders in on and off road situations.
The compact design with its modern styling will support new e-bikes to become a new character. The protection shield keeps the motor safe during hard off road use.
SPECIFICATIONS:
36V motor with nominal power 250W
peak power: 500 W
max. torque: 50 Nm
Sensors: torque, crank speed, vehicle velocity
Weight 4,8 kg
Dimension: 225 x 105 x 150 mm
Motor available in black or silver color
Protection cover available in multicolor design
