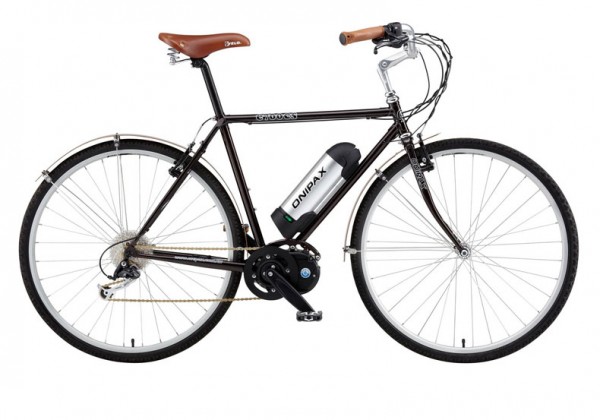

700C CR-MO Steel brazing
CR-MO Steel fork w/pivot, brazing w/casting lugs.
Product Specifications
Component:
Bar: Aluminum 6061, T6. W:620M/M Raise:70m/m.
Stem: Forged Aluminum 6061, T6. E:110m/m.
Grip: PP/GEL, 135mm/135mm.
Saddle: Brown steel-rail w/springs.
Seatpost: AL-6061 27.2 × 300mm, anodizing, Matt Black.
Pedal: Barrel polished Alloy, w/pp cage, Cr-Mo Axle.
Drivetrain:
F/derailleur: nil.
R/derailleur: SHIMANO RD-M430, Top Normal Rear Derailleur. 9-sp.
Freewheel: SHIMANO CS-HG40-8I, 11T-32T, 9-SPD.
Chainwheel: 3/32 × 38T × 170M/M Al Forged Crank BK W/CG .
Shifting lever: SHIMANO SL-M430, RAPIDFIRE Plus Shift Lever.
Chain: 1/2" × 11/128" Silver 116L
Brake:
F/R brake: V-BRAKE Alloy Melt forged BK.
Levers: TEKTRO EL-320-RS, W/Senser control design.
Wheelset:
F/Hub: Alloy.
R/Hub: SHIMANO HB-RM60, Alloy BK 14G × 36H ×130mm BEARING 9-SPEED CASSETTE W/QR.
Rim: 14G×36H×700C ALLOY BED, DOUBLE CHAMBER W/CSW A/V.
Spoke: 14G STAINLESS STEEL.
Electric System
Motor： 36V/9Ah, SIZE 225 x 105 x 150mm, WEIGHT:4.8KG.
Nominal Power: 250W, Peak Power: 500W, Torque:40Nm
Control Unit： Power On/Off Switch.
Front Light On/Off Switch.
Motor support level switch: tour / sport / turbo.
50 x 28 x 18mm
Battery： Lithium-Ion battery, SIZE 115 x 105 x 245mm
36V/9Ah, 2.4kg
