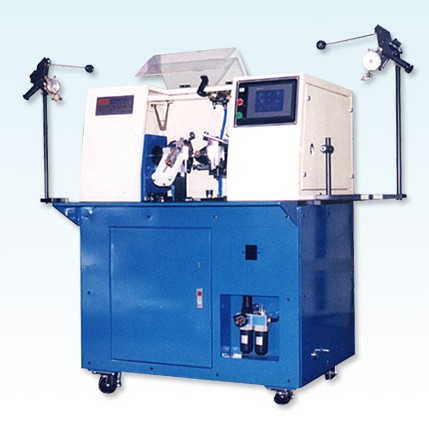

High style monitor touch screen computer numerical control with modification mode & alarm control mode
Excellent machine ability and automated searching position to both sides wining process, remove change slots, winding and finish winding cutting wires. Step by step automatically.
Change fixtures to fit different products and different winding process. Very easy to change programme and winding data by monitor touch screen. Just few seconds to change winding data and winding speed. Improve winding quality, the machine is good quality and durable.
Three spindles servo control by 3 drivers to drive 3 spindles servo motor
☆ Specifications:
1. Motor: AC SERVO MOTOR 750W*2sets，400W*1set
2. Wire dia.:ψ0.1-ψ0.4mm(according to wire rack dimensions)
3. Rotor dia.:ψ25-ψ90mm
4. Rotor thickness:20-60mm
5. Commutator dia.:ψ16-ψ44mm
6. Rotor slot: 8-32 SLOTS
7. RPM:50-3000rpm
8. Use of air pressure:5-8kg/cm
9. Power Supply:AC220V or 380V 50/60HZ
10.Machine Volume:1720x870x1300/mm( LxWxH)
11.Machine Weight:450Kgs
