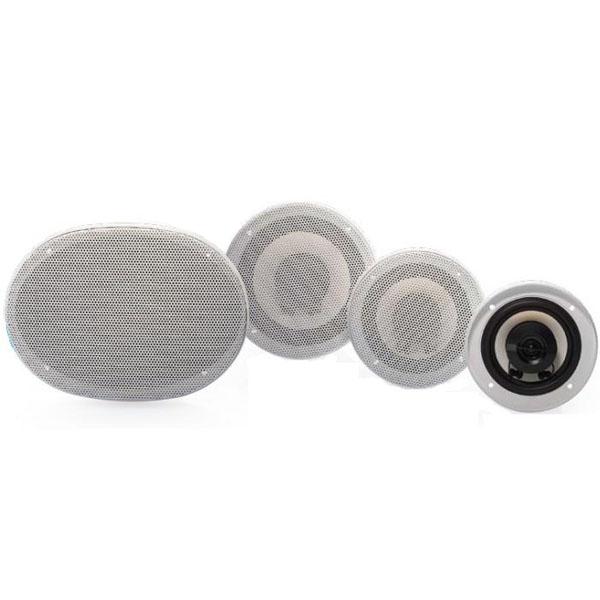

Waterproof Marine Loudspeaker

 Platinum Series (Coaxial and Triaxail)

Premium class marine loudspeakers with a special anti-magnetic design to minimize the interference with navigation equipments. Platinum Series provides powerful and high performance output units to integrate with any audio system. Even in the nosiest environment, the sound can be delivered clearly. The powder coating aluminium grill is UV stablilised, salt waterproof and resistant to most of chemical attacks, such as acid, alkali and chlorine.

 Platinum Series is available in coaxial or triaxial. All units within the range are fully waterproof and the colourfast plastic frame has been developed with extensive testing to withstand UV radiation, appropriate for outdoor marine environments. Applications include swimming pool areas, boats, power yachts, balcony, sauna, bathroom, vessels and other similar difficult and challenging environments.

 Coaxial series

SM-8142

• Power handling: RMS 30W, MAX 60W

• Average sensitivity: 89 ± 2 dB 1W/1m

• Maximum SPL 1m: 104 ± 2 dB/30W

• Frequency response: 100 Hz ~ 20 kHz

• Operating temperature: -20°C ~ 100°C

• Impedance: 4 ohms

• Weight: 590g

SM-8152

• Power handling: RMS 40W, MAX 80W

• Average sensitivity: 89 ± 2 dB 1W/1m

• Maximum SPL 1m: 104 ± 2 dB/40W

• Frequency response: 90 Hz ~ 20 kHz

• Operating temperature: -20°C ~ 100°C

• Impedance: 4 ohms

• Weight: 600g

SM-8162

• Power handling: RMS50W, MAX 100W

• Average sensitivity: 90 ± 2 dB 1W/1m

• Maximum SPL 1m: 107 ± 2 dB/50W

• Frequency response: 80 Hz ~ 20 kHz

• Operating temperature: -20°C ~ 100°C

• Impedance: 4 ohms

• Weight: 700g

SM-8192

• Power handling: RMS 70W, MAX 140W

• Average sensitivity: 91± 2 dB 1W/1m

• Maximum SPL 1m: 109 ± 2 dB/70W

• Frequency response: 50 Hz ~ 20 kHz

• Operating temperature: -20°C ~ 100°C

• Impedance: 4 ohms

• Weight: 1400g
