Brand:DNM
Model:USD-8N
Inquiry

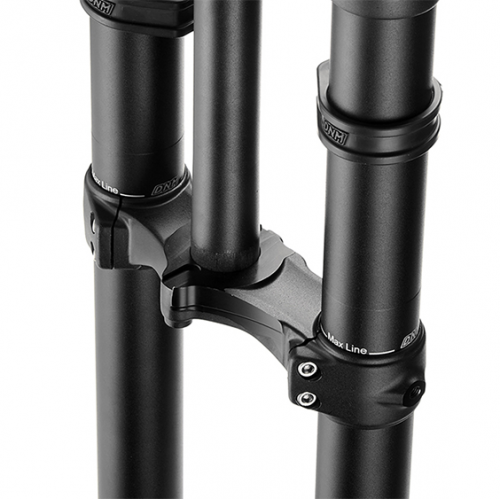

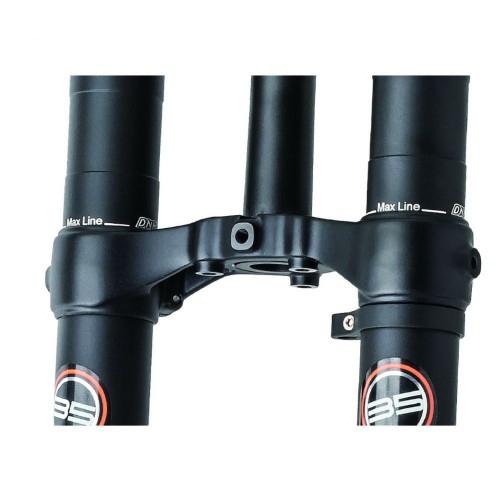

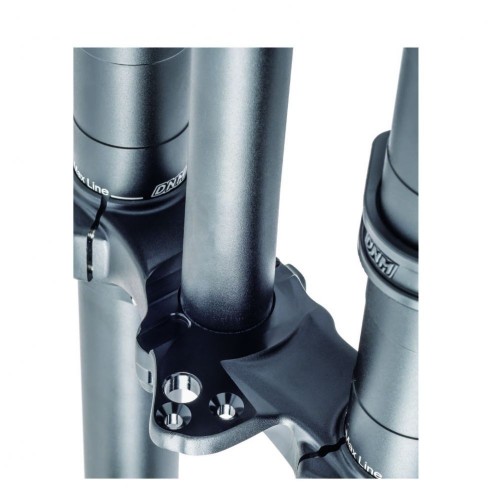

For safety reasons, we develop a new front forks for E-bikes. With all these mounting holes on the crown, the customer would able to install headlights, direction lights, and handlebar lock. Make their ride safe and comfort. (NOTE: the fork does not include the accessories, please find your own supplier)
| Weight | 3.9 KG ( 8.6 lb) |
|---|---|
| Wheel size | 24 / 26 / 27.5 inch |
| Travel | 120 mm ( 4.72 inch) For 24 inch / 203 mm ( 8 inch) For 26、27.5 inch |
| Steerer tube |
28.6 mm (1.13 inch) （Straight）, 1-1/8” to 1.5” （Taper）AL-7075 |
| Drop out/Crown material | Forging, AL-6061 |
| Outer tube | 42 mm (1.65inch) / AL- 6061 |
| Inner tube | 35mm (1.38inch) / AL-7050 Hard Anodized |
| Down tube |
20 mm ( 0.79 inch ) x110mm Thru-axle Design AL-7075 |
| Features | Inverted fork |
| Inner structure | Coil spring |
| Adjustments | Preload / Rebound / Air Pressure Adjustable |
| Barke type | Disc only ( Post mount) |
| Riding style | DH / E-BIKE |
| Color | Black |
Length and travel are customizable, MOQ required
