Brand:Ananda

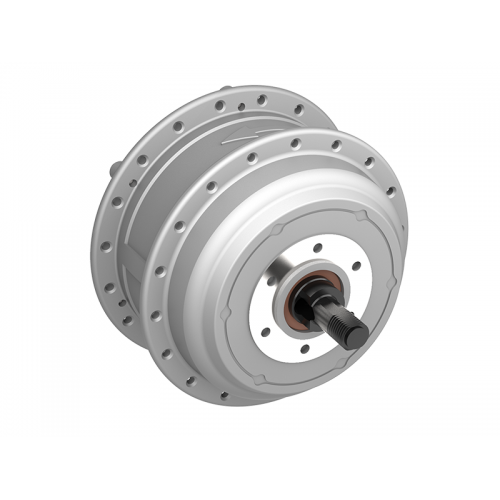

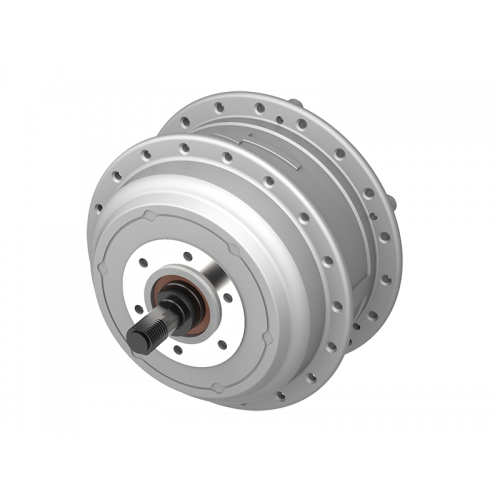

Model:M129VD
Deliver:In 3 days
Inquiry
Parameter
Construction
Parameter
Construction Gear Drive
Rated Voltage (DC) 36V/48V
Rated Power (W) 250
Max Torque (Nm) 40
Max Efficiency（%） ≥80%
Weight(kg) 2.3
Color Black/Silver
Noise Grade (dB) <55
OperationTemperature (°C) -20~55
Mounting Parameters
Brake Type Disc Brake/V Brake
Cable Routing Shaft side, left or Right
Cable Length (mm) 250
Connector 3+6Pin Male Connector
Spoke Spectification 36H*13G
Free Wheel No
Certifications CE/RoHS
Tests Waterproof: IPX5
Salt Spray Test Standard(h): 96h
Speed Sensor 1 Pulse per Circle
Reduction Ratio 1：7
Magnet Poles 14
Usage eCity/eTrekking
