Brand:Slide Away
Model:URBAN series
Specifications:700C road bike frame set, Columbus Spirit tubing
Min quantity:2set
Quantity:10set
Deliver:In 45 days
Buy

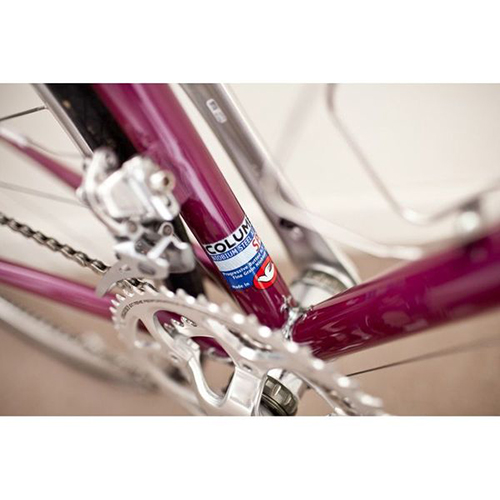

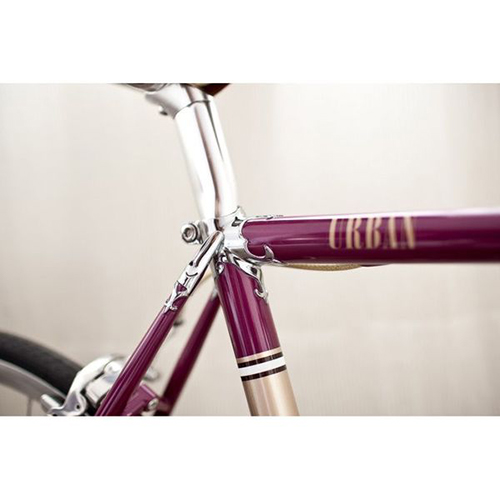

URBAN series is the first model of Slide Away lug frame, using electroplated Columbus Spirit triple butted tubing, combined with traditional styled curved lugsto provide the ultimate in strength around the weld joints.
It’s a truly masterpiece show the time consuming process and technic of hand made.
|
S
|
M
|
L
|
XL
|
2XL
|
3XL
|
|
|
A. Head tube lenght
|
100mm
|
115mm
|
115mm
|
134mm
|
150mm
|
170mm
|
|
B. Head tube angle
|
70.5°
|
70.5°
|
71°
|
71°
|
72°
|
72°
|
|
C. Top tube lenght
|
526.4mm
|
531.1mm
|
545.5mm
|
550.0mm
|
555.0mm
|
570.0mm
|
|
D. Seat tube angle
|
480mm
|
500mm
|
520mm
|
540mm
|
560mm
|
580mm
|
|
E. Seat tube length
|
72.5°
|
72.5°
|
72.5°
|
72.5°
|
73.5°
|
73.5°
|
|
F. Seat tube diameter
|
28.6mm
|
28.6mm
|
28.6mm
|
28.6mm
|
28.6mm
|
28.6mm
|
|
G. Chain stay length
|
405mm
|
405mm
|
405mm
|
405mm
|
405mm
|
405mm
|
|
H. Chain stay angle
|
62.7°
|
62.7°
|
62.7°
|
62.7°
|
63.7°
|
63.7°
|
|
I. BB drop
|
65mm
|
65mm
|
65mm
|
65mm
|
65mm
|
65mm
|
